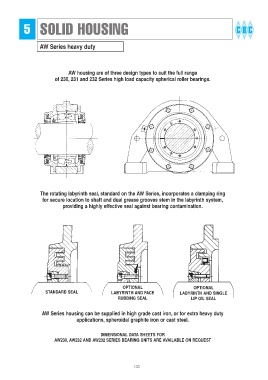

5 SOLID HOUSING

AW Series heavy duty

AW housing are of three design types to suit the full range
of 230, 231 and 232 Series high load capacity spherical roller bearings.

The rotating labyrinth seal, standard on the AW Series, incorporates a clamping ring
for secure location to shaft and dual grease grooves stem in the labyrinth system,
providing a highly effective seal against bearing contamination.

OPTIONAL OPTIONAL
STANDARD SEAL LABYRINTH AND FACE LABYRINTH AND SINGLE
RUBBING SEAL LIP OIL SEAL

AW Series housing can be supplied in high grade cast iron, or for extra heavy duty
applications, spheroidal graphite iron or cast steel.

DIMENSIONAL DATA SHEETS FOR
AW230, AW232 AND AW232 SERIES BEARING UNITS ARE AVAILABLE ON REQUEST

133
