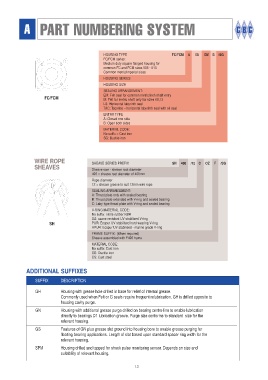

A PART NUMBERING SYSTEM

HOUSING TYPE FC/FCM 5 09 EM B /SG
FC/FCM series:
Medium duty square flanged housing for
common FC and FCM sizes 506 - 513
Common metric/imperial sizes
HOUSING SERIES
HOUSING SIZE
SEALING ARRANGEMENT:
EM: Felt seal for common metric/inch shaft entry
FC/FCM M: Felt for metric shaft only for sizes 08,13
LS: Horizontal labyrinth seal
TAC: Taconite – horizontal labyrinth seal with oil seal
ENTRY TYPE
A: Closed one side
B: Open both sides
MATERIAL CODE:
No suffix = Cast iron
SG: Ductile iron

WIRE ROPE SHEAVE SERIES PREFIX SH 400 /12 C OZ F /SG
SHEAVES Sheave size - sheave root diameter
400 = sheave root diameter of 400mm
Rope diameter
12 = sheave groove to suit 12mm wire rope
SEALING ARRANGEMENT:
A: Thrust plate only with sealed bearing
B: Thrust plate extended with V-ring and sealed bearing
C: Laby type thrust plate with V-ring and sealed bearing
V-RING MATERIAL CODE:
No suffix: nitrile rubber NBR
OZ: ozone resistant UV stabilised V-ring
SH PUR: Ecopur UV stabilised hard wearing V-ring
HPUR: Ecopur UV stabilised - marine grade V-ring
FRAME SUFFIX: (When required)
Sheave assembled with F400 frame
MATERIAL CODE:
No suffix: Cast iron
SG: Ductile iron
CS: Cast steel

ADDITIONAL SUFFIXES

SUFFIX DESCRIPTION

GH Housing with grease hole drilled in base for relief of internal grease.
Commonly used when Felt or G seals require frequent relubrication. GH is drilled opposite to
housing cavity purge.
GN Housing with additional grease purge drilled on bearing centre line to enable lubrication
directly to bearings D1 lubrication groove. Purge size conforms to standard size for the
relevant housing.

GS Features of GN plus grease slot ground into housing bore to enable grease purging for
floating bearing applications. Length of slot based upon standard spacer ring width for the
relevant housing.
SPM Housing drilled and tapped for shock pulse monitoring sensor. Depends on size and
suitability of relevant housing.

13
