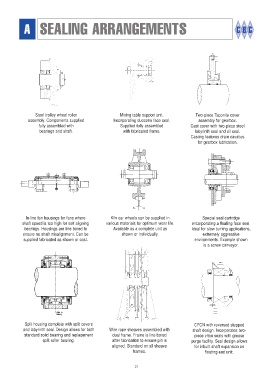

A SEALING ARRANGEMENTS

Steel trolley wheel roller Mixing table support unit. Two-piece Taconite cover
assembly. Components supplied Incorporating duocone face seal. assembly for gearbox.
fully assembled with Supplied fully assembled Cast cover with two-piece steel
bearings and shaft. with fabricated frame. labyrinth seal and oil seal.
Casting features drain cavaties
for gearbox lubrication.

In-line fan housings for fans where Kiln car wheels can be supplied in Special seal cartridge
shaft speed is too high for self aligning various materials for optimum wear life. encorporating a floating face seal.
bearings. Housings are line bored to Available as a complete unit as Ideal for slow turning applications,
ensure no shaft misalignment. Can be shown or individually. extremely aggressive
supplied fabricated as shown or cast. environments. Example shown
is a screw conveyor.

Split housing complete with split covers CFCN with reversed stepped
and labyrinth seal. Design allows for both Wire rope sheaves assembled with shaft design. Incorporates two-
standard solid bearing and replacement dual frame. Frame is line bored piece viton seals with grease
split roller bearing. after fabrication to ensure pin is purge facility. Seal design allows
aligned. Standard on all sheave for inbuilt shaft expansion on
frames. floating end unit.
