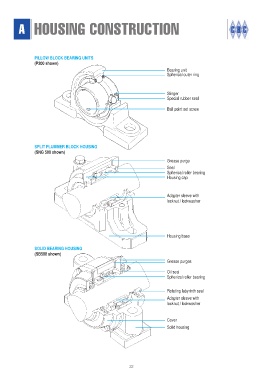

A HOUSING CONSTRUCTION
PILLOW BLOCK BEARING UNITS
(P200 shown)
Bearing unit
Spherical outer ring
Slinger
Special rubber seal
Ball point set screw
SPLIT PLUMMER BLOCK HOUSING
(SNG 500 shown)
Grease purge
Seal
Spherical roller bearing
Housing cap
Adapter sleeve with
locknut / lockwasher
Housing base
SOLID BEARING HOUSING
(SB500 shown)
Grease purges
Oil seal
Spherical roller bearing
Rotating labyrinth seal
Adapter sleeve with
locknut / lockwasher
Cover
Solid housing
