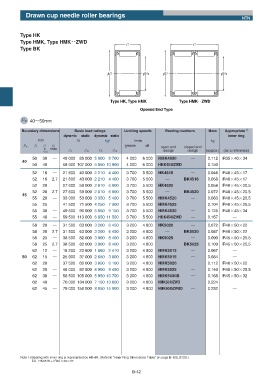

Drawn cup needle roller bearings
NTN

Type HK
Type HMK, Type HMKʝʝZWD
C C
Type BK

ПD ПFW ПD ПFW

Type HK, Type HMK Type HMKʝZWD
Opened End Type

FW 40ʙ50mm

Boundary dimensions Basic load ratings Limiting speeds Bearing numbers Mass Appropriate 1)
dynamic static dynamic static inner ring
mm N kgf r/min kg
Fw D C C1 grease oil open end closed end
0 max
-0.2 Cr Cor Cr Cor design design (approx.) (as a reference)
50 30 ʕ 49 000 85 000 5 000 8 700 4 000 6 000 HMK4030 ʕ 0.112 IR35ʷ40ʷ34
40
50 40 ʕ 58 500 107 000 5 950 10 900 4 000 6 000 HMK4040ZWD ʕ 0.150 ʕ
52 16 ʕ 21 600 43 000 2 210 4 400 3 700 5 500 HK4516 ʕ 0.046 IR40ʷ45ʷ17
52 16 2.7 21 600 43 000 2 210 4 400 3 700 5 500 ʕ BK4516 0.058 IR40ʷ45ʷ17
52 20 ʕ 27 600 59 000 2 810 6 000 3 700 5 500 HK4520 ʕ 0.058 IR40ʷ45ʷ20.5
52 20 2.7 27 600 59 000 2 810 6 000 3 700 5 500 ʕ BK4520 0.072 IR40ʷ45ʷ20.5
45
55 20 ʕ 33 000 53 000 3 350 5 400 3 700 5 500 HMK4520 ʕ 0.083 IR40ʷ45ʷ20.5
55 25 ʕ 41 500 71 500 4 250 7 300 3 700 5 500 HMK4525 ʕ 0.104 IR40ʷ45ʷ26.5
55 30 ʕ 49 500 90 000 5 050 9 150 3 700 5 500 HMK4530 ʕ 0.125 IR40ʷ45ʷ34
55 40 ʕ 59 500 113 000 6 050 11 500 3 700 5 500 HMK4540ZWD ʕ 0.167 ʕ
58 20 ʕ 31 500 63 000 3 200 6 450 3 200 4 800 HK5020 ʕ 0.072 IR40ʷ50ʷ22
58 20 2.7 31 500 63 000 3 200 6 450 3 200 4 800 ʕ BK5020 0.087 IR40ʷ50ʷ22
58 25 ʕ 38 500 82 000 3 900 8 400 3 200 4 800 HK5025 ʕ 0.090 IR45ʷ50ʷ25.5
58 25 2.7 38 500 82 000 3 900 8 400 3 200 4 800 ʕ BK5025 0.109 IR45ʷ50ʷ25.5
62 12 ʕ 18 200 23 600 1 860 2 410 3 200 4 800 HMK5012 ʕ 0.067 ʕ
50 62 15 ʕ 25 900 37 000 2 650 3 800 3 200 4 800 HMK5015 ʕ 0.084 ʕ
62 20 ʕ 37 500 60 000 3 850 6 100 3 200 4 800 HMK5020 ʕ 0.112 IR40ʷ50ʷ22
62 25 ʕ 48 000 82 500 4 900 8 450 3 200 4 800 HMK5025 ʕ 0.140 IR45ʷ50ʷ25.5
62 30 ʕ 58 500 105 000 5 950 10 700 3 200 4 800 HMK5030B ʕ 0.168 IR45ʷ50ʷ32
62 40 ʕ 70 000 134 000 7 150 13 600 3 200 4 800 HMK5040ZWD ʕ 0.224 ʕ
62 45 ʕ 79 000 156 000 8 050 15 900 3 200 4 800 HMK5045ZWBD ʕ 0.252 ʕ

Note 1) Bearing with inner ring is represented by HK+IR. (Refer to "Inner Ring Dimensions Table" on page B-122, B123.)
EX. HK4516 + IR40ʷ45ʷ17
B-42
