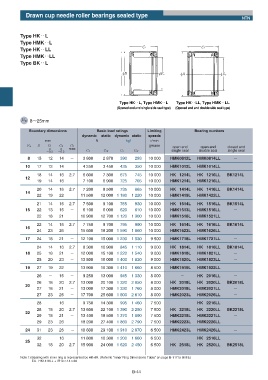

Drawn cup needle roller bearings sealed type
NTN

Type HKʝL
Type HMKʝL
Type HKʝLL
Type HMKʝLL
Type BKʝL

Type HKʝL, Type HMKʝL Type HKʝLL, Type HMKʝLL
(Opened end and single-side seal type) (Opened end and double-side seal type)

FW 8ʙ25mm

Boundary dimensions Basic load ratings Limiting Bearing numbers
dynamic static dynamic static speeds
mm N kgf r/min
Fw D C1 C2 C3 grease open end open end closed end
0 0 max
ʵ0.2 ʵ0.2 Cr Cor Cr Cor single seal double seal single seal
8 15 12 14 ʵ 3 800 2 870 390 293 10 000 HMK0812L HMK0814LL ʵ

10 17 12 14 ʵ 4 250 3 450 435 350 10 000 HMK1012L HMK1014LL ʵ
18 14 16 2.7 6 600 7 300 675 745 10 000 HK 1214L HK 1216LL BK1214L
12
19 14 16 ʵ 7 100 6 900 725 705 10 000 HMK1214L HMK1216LL ʵ
20 14 16 2.7 7 200 8 500 735 865 10 000 HK 1414L HK 1416LL BK1414L
14
22 19 22 ʵ 11 500 12 000 1 180 1 220 10 000 HMK1419L HMK1422LL ʵ
21 14 16 2.7 7 500 9 100 765 930 10 000 HK 1514L HK 1516LL BK1514L
15 22 13 16 ʵ 6 100 6 000 620 610 10 000 HMK1513L HMK1516LL ʵ
22 18 21 ʵ 10 900 12 700 1 120 1 300 10 000 HMK1518L HMK1521LL ʵ

22 14 16 2.7 7 750 9 700 795 990 10 000 HK 1614L HK 1616LL BK1614L
16
24 23 26 ʵ 15 600 18 200 1 590 1 860 10 000 HMK1623L HMK1626LL ʵ
17 24 18 21 ʵ 12 100 15 000 1 230 1 530 9 500 HMK1718L HMK1721LL ʵ
24 14 16 2.7 8 300 10 900 845 1 110 9 000 HK 1814L HK 1816LL BK1814L
18 25 18 21 ʵ 12 000 15 100 1 220 1 540 9 000 HMK1818L HMK1821LL ʵ
25 20 23 ʵ 13 800 18 000 1 400 1 830 9 000 HMK1820L HMK1823LL ʵ

19 27 19 22 ʵ 13 900 16 300 1 410 1 660 8 500 HMK1919L HMK1922LL ʵ
26 ʵ 16 ʵ 9 250 13 000 945 1 330 8 000 ʵ HK 2016LL ʵ
26 18 20 2.7 13 000 20 100 1 320 2 050 8 000 HK 2018L HK 2020LL BK2018L
20
27 18 21 ʵ 13 000 17 300 1 330 1 760 8 000 HMK2018L HMK2021LL ʵ
27 23 26 ʵ 17 700 25 600 1 800 2 610 8 000 HMK2023L HMK2026LL ʵ
28 ʵ 16 ʵ 9 750 14 300 995 1 460 7 500 ʵ HK 2216LL ʵ
28 18 20 2.7 13 600 22 100 1 390 2 250 7 500 HK 2218L HK 2220LL BK2218L
22
29 18 21 ʵ 13 400 18 500 1 370 1 890 7 500 HMK2218L HMK2221LL ʵ
29 23 26 ʵ 18 200 27 400 1 860 2 790 7 500 HMK2223L HMK2226LL ʵ
24 31 23 26 ʵ 18 800 29 100 1 910 2 970 6 500 HMK2423L HMK2426LL ʵ
32 ʵ 16 ʵ 11 800 16 300 1 200 1 660 6 500 ʵ HK 2516LL ʵ
25
32 18 20 2.7 15 900 24 000 1 620 2 450 6 500 HK 2518L HK 2520LL BK2518L

Note 1) Bearing with inner ring is represented by HK+IR. (Refer to "Inner Ring Dimensions Table" on page B-117 to B119.)
EX. HK1416LL + IR10ʷ14ʷ20
