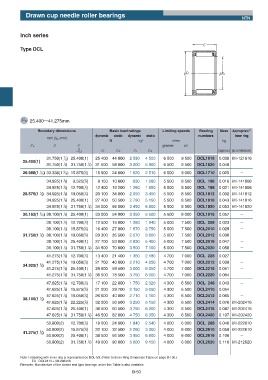

Page 112 - needle bearings

Drawn cup needle roller bearings
NTN

Inch series

Type DCL

FW 25.400ʙ41.275mm

Boundary dimensions Basic load ratings Limiting speeds Bearing Mass Appropriate 1)
dynamic static dynamic static numbers inner ring
mm (!/25 . 4mm)
N kgf r/min kg
Fw D C grease oil
0
ʵ0.2 Cr Cor Cr Cor (approx.) (as a reference)
31.750(1 !/4) 25.400(1) 25 400 44 000 2 590 4 500 6 500 9 500 DCL1616 0.038 MI-121616
25.400(1)
31.750(1 !/4) 31.750(1 !/4) 31 500 58 000 3 200 5 900 6 500 9 500 DCL1620 0.048 ʵ
26.988(1 !/16) 33.338(1 %/16) 15.875(%/8) 15 900 24 600 1 620 2 510 6 000 9 000 DCL1710 0.025 ʵ

34.925(1 #/8) 9.525(#/8) 8 150 10 600 830 1 080 5 500 8 500 DCL 186 0.016 MI-141808
34.925(1 #/8) 12.700(!/2) 12 400 18 200 1 260 1 850 5 500 8 500 DCL 188 0.021 MI-141808
28.575(1 !/8) 34.925(1 #/8) 19.050(#/4) 20 100 34 000 2 050 3 450 5 500 8 500 DCL1812 0.032 MI-141812
34.925(1 #/8) 25.400(1) 27 400 50 500 2 790 5 150 5 500 8 500 DCL1816 0.043 MI-141816
34.925(1 #/8) 31.750(1 !/4) 34 000 66 500 3 450 6 800 5 500 8 500 DCL1820 0.053 MI-141820
30.162(1 #/16) 38.100(1 !/2) 25.400(1) 33 000 54 000 3 350 5 500 5 500 8 000 DCL1916 0.057 ʵ
38.100(1 !/2) 12.700(!/2) 12 500 19 000 1 280 1 940 5 000 7 500 DCL 208 0.023 ʵ
38.100(1 !/2) 15.875(%/8) 16 400 27 000 1 670 2 750 5 000 7 500 DCL2010 0.029 ʵ
31.750(1 !/4) 38.100(1 !/2) 19.050(#/4) 20 300 35 500 2 070 3 600 5 000 7 500 DCL2012 0.036 ʵ
38.100(1 !/2) 25.400(1) 27 700 53 000 2 830 5 400 5 000 7 500 DCL2016 0.047 ʵ
38.100(1 !/2) 31.750(1 !/4) 34 500 70 000 3 500 7 100 5 000 7 500 DCL2020 0.058 ʵ
41.275(1 %/8) 12.700(!/2) 13 400 21 400 1 360 2 180 4 700 7 000 DCL 228 0.027 ʵ
41.275(1 %/8) 19.050(#/4) 21 700 40 000 2 210 4 050 4 700 7 000 DCL2212 0.038 ʵ
34.925(1 #/8)
41.275(1 %/8) 25.400(1) 29 600 59 500 3 000 6 050 4 700 7 000 DCL2216 0.051 ʵ
41.275(1 %/8) 31.750(1 !/4) 36 500 78 500 3 750 8 000 4 700 7 000 DCL2220 0.064 ʵ
47.625(1 &/8) 12.700(!/2) 17 100 22 800 1 750 2 320 4 300 6 500 DCL 248 0.043 ʵ
47.625(1 &/8) 15.875(%/8) 21 000 29 700 2 150 3 050 4 300 6 500 DCL2410 0.054 ʵ
47.625(1 &/8) 19.050(#/4) 26 600 40 000 2 710 4 100 4 300 6 500 DCL2412 0.065 ʵ
38.100(1 !/2)
47.625(1 &/8) 22.225(&/8) 32 000 50 500 3 250 5 150 4 300 6 500 DCL2414 0.076 MI-202416
47.625(1 &/8) 25.400(1) 36 500 60 500 3 750 6 200 4 300 6 500 DCL2416 0.087 MI-202416
47.625(1 &/8) 31.750(1 !/4) 46 500 82 000 4 750 8 350 4 300 6 500 DCL2420 0.107 MI-202420
50.800(2) 12.700(!/2) 18 000 24 900 1 840 2 540 4 000 6 000 DCL 268 0.046 MI-222610
50.800(2) 15.875(%/8) 22 100 32 500 2 260 3 300 4 000 6 000 DCL2610 0.058 MI-222610
41.275(1 %/8)
50.800(2) 25.400(1) 38 500 66 500 3 950 6 800 4 000 6 000 DCL2616 0.106 ʵ
50.800(2) 31.750(1 !/4) 49 000 90 000 5 000 9 150 4 000 6 000 DCL2620 0.116 MI-212620

Note 1) Bearing with inner ring is represented by DCL-MI. (Refer to Inner Ring Dimension Table on page B-130.)
EX. DCL2414 + MI-202416
Remarks: Manufacture of the closed end type bearings under this Table is also available.
B-50
