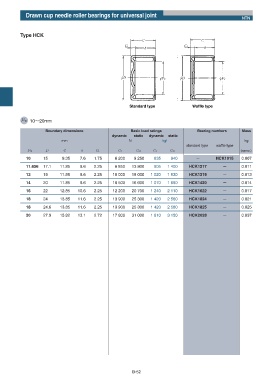

Drawn cup needle roller bearings for universal joint
NTN

Type HCK

Standard type Waffle type

FW 10ʙ20mm

Boundary dimensions Basic load ratings Bearing numbers Mass
dynamic static dynamic static
mm N kgf kg
standard type waffle type
Fw D C b C1 Cr Cor Cr Cor (approx.)
ʵ
10 15 9.35 7.6 1.75 6 200 9 250 635 940 ʵ HCK1015 0.007
11.656 17.1 11.85 9.6 2.25 8 850 13 800 905 1 400 HCK1217 ʵ 0.011
ʵ
ʵ
13 19 11.85 9.6 2.25 10 000 15 000 1 020 1 530 HCK1319 ʵ 0.013
14 20 11.85 9.6 2.25 10 500 16 600 1 070 1 690 HCK1420 ʵ 0.014
ʵ
16 22 12.85 10.6 2.25 12 200 20 700 1 240 2 110 HCK1622 ʵ 0.017
ʵ
ʵ
18 24 13.85 11.6 2.25 13 900 25 300 1 420 2 580 HCK1824 ʵ 0.021
ʵ
18 24.6 13.85 11.6 2.25 13 900 25 300 1 420 2 580 HCK1825 ʵ 0.025
ʵ
20 27.9 15.82 13.1 2.72 17 800 31 000 1 810 3 150 HCK2028 ʵ 0.037

B-52
