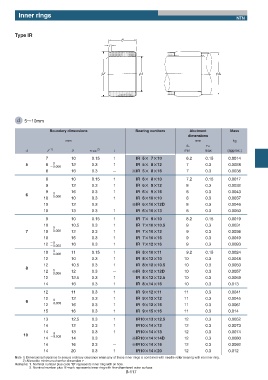

Page 179 - needle bearings

Inner rings
NTN

Type IR

d 5ʙ10mm

Boundary dimensions Bearing numbers Abutment Mass
dimensions
mm mm kg
da ras
d F 1) B rs min 2) t min max (approx.)
7 10 0.15 1 IR 5ʷʷ 7ʷʷ10 6.2 0.15 0.0014
5 8 0 12 0.3 1 IR 5ʷʷ 8ʷʷ12 7 0.3 0.0028
ʵ0.006
8 16 0.3 ʵ ˞ IR 5ʷʷ 8ʷʷ16 7 0.3 0.0038
8 10 0.15 1 IR 6ʷʷ 8ʷʷ10 7.2 0.15 0.0017
9 12 0.3 1 IR 6ʷʷ 9ʷʷ12 8 0.3 0.0032
9 0 16 0.3 1 IR 6ʷʷ 9ʷʷ16 8 0.3 0.0043
6 ʵ0.006
10 10 0.3 1 IR 6ʷʷ10ʷʷ10 8 0.3 0.0037
10 12 0.3 ʵ ˞ IR 6ʷʷ10ʷʷ12D 8 0.3 0.0046
10 13 0.3 1 IR 6ʷʷ10ʷʷ13 8 0.3 0.0050
9 10 0.15 1 IR 7ʷʷ 9ʷʷ10 8.2 0.15 0.0019
10 10.5 0.3 1 IR 7ʷʷ10ʷʷ10.5 9 0.3 0.0031
0
7 10 ʵ0.006 12 0.3 1 IR 7ʷʷ10ʷʷ12 9 0.3 0.0036
10 16 0.3 1 IR 7ʷʷ10ʷʷ16 9 0.3 0.0049
ʵ0
12 16 0.3 1 IR 7ʷʷ12ʷʷ16 9 0.3 0.0093
ʵ0.008
0
10 11 0.15 1 IR 8ʷʷ10ʷʷ11 9.2 0.15 0.0024
ʵ0.006
12 10 0.3 1 IR 8ʷʷ12ʷʷ10 10 0.3 0.0048
12 10.5 0.3 1 IR 8ʷʷ12ʷʷ10.5 10 0.3 0.0050
8
12 0 12 0.3 ʵ ˞ IR 8ʷʷ12ʷʷ12D 10 0.3 0.0057
ʵ0.008
12 12.5 0.3 1 IR 8ʷʷ12ʷʷ12.5 10 0.3 0.0059
14 16 0.3 1 IR 8ʷʷ14ʷʷ16 10 0.3 0.013
12 11 0.3 1 IR 9ʷʷ12ʷʷ11 11 0.3 0.0041
12 0 12 0.3 1 IR 9ʷʷ12ʷʷ12 11 0.3 0.0045
9 ʵ0.008
12 16 0.3 1 IR 9ʷʷ12ʷʷ16 11 0.3 0.0061
15 16 0.3 1 IR 9ʷʷ15ʷʷ16 11 0.3 0.014
13 12.5 0.3 1 IR10ʷʷ13ʷʷ12.5 12 0.3 0.0052
14 12 0.3 1 IR10ʷʷ14ʷʷ12 12 0.3 0.0073
14 0 13 0.3 1 IR10ʷʷ14ʷʷ13 12 0.3 0.0074
10 ʵ0.008
14 14 0.3 ʵ ˞ IR10ʷʷ14ʷʷ14D 12 0.3 0.0080
14 16 0.3 ʵ ˞ IR10ʷʷ14ʷʷ16 12 0.3 0.0092
14 20 0.3 1 IR10ʷʷ14ʷʷ20 12 0.3 0.012
Note 1) Dimensional tolerance to secure ordinary clearance when any of these inner rings is combined with needle roller bearing with no inner ring.
2) Allowable minimum chamfer dimension r .
Remarks: 1. Nominal number plus code "D" represents inner ring with oil hole.
2. Nominal number plus ˞-mark represents inner ring with fine-chamfered outer surface.
B-117
