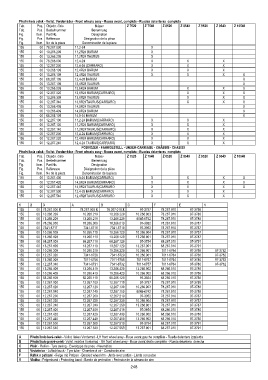

Page 248 - Zetor UR III 7520-10540
P. 248
Přední kola celek - Vollst. Vorderräder - Front wheels assy - Roues avant, complete - Ruedas delanteras completo
Tab. Poz. Objedn. číslo Název Z 7520 Z 7540 Z 8520 Z 8540 Z 9520 Z 9540 Z 10540
Tab. Pos. Bestellnummer Benennung
Fig. Item. Part No. Designation
Fig. Pos. Référence Désignation de la piéce
Fig. Item. No de la pieza Denominación de la pieza
155 00 78.267.000 11,2-24 X
155 00 10.266.209 11,2R24 BARUM X
155 00 13.266.209 11,2R24 TAURUS X
155 00 78.266.000 12,4-24 X X X
155 00 12.267.200 12,4-24 (CARRARO) X X X
155 00 10.266.109 12,4R24 BARUM X X X
155 00 13.266.109 12,4R24 TAURUS X X X X
155 00 68.267.109 12,4-28 BARUM X
155 00 13.267.109 12,4R28 TAURUS X
155 00 10.266.309 13,6R24 BARUM X X X
155 00 12.367.320 13,6R24 BARUM(CARRARO) X X X
155 00 13.266.309 13,6R24 TAURUS X X X
155 00 12.267.340 13,6R24TAURUS(CARRARO) X X X
155 00 13.266.409 14,9R24 TAURUS X
155 00 10.266.409 14,9R24 BARUM X
155 00 68.266.109 14,9-24 BARUM X
155 00 12.267.100 11,2-24 BARUM(CARRARO) X X X
155 00 12.267.120 11,2R24 BARUM(CARRARO) X X X
155 00 12.267.140 11,2R24TAURUS(CARRARO) X X X
155 00 12.267.200 12,4-24 BARUM(CARRARO) X X X
155 00 12.267.220 12,4R24 BARUM(CARRARO) X X X
155 00 12.267.240 12,4-24 TAURUS(CARRARO) X X X
PODVOZEK - FAHRGESTELL - UNDER-CARRIAGE - CHÂSSIS - CHASIS0
Přední kola celek - Vollst. Vorderräder - Front wheels assy - Roues avant, complete - Ruedas delanteras completo
Tab. Poz. Objedn. číslo Název Z 7520 Z 7540 Z 8520 Z 8540 Z 9520 Z 9540 Z 10540
Tab. Pos. Bestellnummer Benennung
Fig. Item. Part No. Designation
Fig. Pos. Référence Désignation de la piéce
Fig. Item. No de la pieza Denominación de la pieza
155 00 12.267.400 14,9-24 BARUM(CARRARO) X X X X
155 00 12.267.420 14,9R24 BARUM(CARRARO) X X X X
155 00 12.267.440 14,9R24TAURUS(CARRARO X X X X
155 00 12.267.500 12,4-28 BARUM(CARRARO) X X X
155 00 12.267.540 12,4R28TAURUS(CARRARO X X X
1 2 3 A B C F E V
155 00 78.267.000 X 78.267.009 X 78.267.019 X 97-3757 78.267.910 97-3788
155 00 10.266.209 10.266.219 10.266.229 10.266.903 78.267.910 97-3788
155 00 13.266.209 13.266.219 13.266.229 6045-6742 78.267.910 97-3788
155 00 78.266.000 78.266.009 78.266.019 97-3952 78.267.910 97-3787
155 00 7341-6717 7341-6718 7341-6719 97-3952 78.267.910 97-3787
155 00 10.266.109 10.266.119 10.266.129 10.266.904 78.267.910 97-3787
155 00 13.266.109 13.266.119 13.266.129 13.266.901 78.267.910 97-3787
155 00 68.267.109 68.267.119 68.267.129 97-3754 68.267.010 97-3791
155 00 13.267.109 13.267.119 13.267.129 13.267.901 68.267.010 97-3791
155 00 10.266.309 10.266.319 10.266.329 10.266.901 7011-6764 97-3786 97-3762
155 00 12.267.320 7341-6728 7341-6729 10.266.901 7011-6764 97-3786 97-3762
155 00 13.266.309 7011-6756 7011-6758 7011-6757 7011-6764 97-3786 97-3762
155 00 12.267.340 7341-6731 7341-6732 7011-6757 7011-6764 97-3786 97-3762
155 00 13.266.409 13.266.419 13.266.429 13.266.902 68.266.010 97-3786
155 00 10.266.409 10.266.419 10.266.429 10.266.902 68.266.010 97-3786
155 00 68.266.109 68.266.119 68.266.129 97-3854 68.266.010 97-3786
155 00 12.267.100 12.267.109 12.267.119 97-3757 78.267.910 97-3788
155 00 12.267.120 12.267.129 12.267.139 10.266.903 78.267.910 97-3788
155 00 12.267.140 12.267.149 12.267.159 6045-6742 78.267.910 97-3788
155 00 12.267.200 12.267.209 12.267.219 97-3952 78.267.910 97-3787
155 00 12.267.220 12.267.229 12.267.239 10.266.904 78.267.910 97-3787
155 00 12.267.240 12.267.249 12.267.259 13.266.901 78.267.910 97-3787
155 00 12.267.400 12.267.409 12.267.419 97-3854 68.266.010 97-3786
155 00 12.267.420 12.267.429 12.267.439 10.266.902 68.266.010 97-3786
155 00 12.267.440 12.267.449 12.267.459 13.266.902 68.266.010 97-3786
155 00 12.267.500 12.267.509 12.267.519 97-3754 68.267.010 97-3791
155 00 12.267.540 12.267.549 12.267.559 13.267.901 68.267.010 97-3791
A Přední kolo levé-celek - Vollst. linkes Vorderrad - LH front wheel assy - Roue avant gauche complète - Rueda delantera izquierda
B Přední kolo pravé-celek- Vollst. rechtes Vorderrad - RH front wheel assy - Roue avant droite complète - Rueda delantera derecha
C Plát - Reifen - Tyre casing - Enveloppe de pneu - Neumático
E Vzdunice - Luftschlauch - Tyre tube - Chambre à air - Camára de aire
F Ráfek s patkami - Felge mit Pratzen - Beaded wheel rim - Jante avec pattes - Llanta con patas
V Vloka - Felgenband - Protecting band - Bande de protection - Protector de la cámara de aire
248
