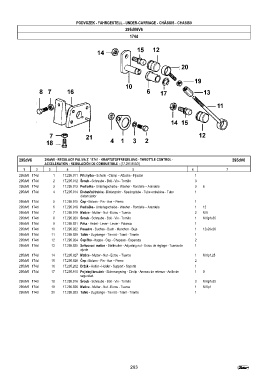

Page 263 - Zetor Forterra II 8641-11741

PODVOZEK - FAHRGESTELL - UNDER-CARRIAGE - CHÂSSIS - CHASIS0
295dV6V6
174d

295dV6 295dV6 - REGULACE PALIVA Z 11741 - KRAFTSTOFFREGELUNG - THROTTLE CONTROL - 295dV6
ACCÉLÉRATION - REGULACIÓN DE COMBUSTIBLE - (17.295.905/3)
1 2 3 4 5 6 7
295dV6 174d 1 17.295.911 Příchytka - Schelle - Clamp – Attache - Fijación 1
295dV6 174d 2 17.295.912 Šroub - Schraube - Bolt - Vis - Tornillo 3
295dV6 174d 3 17.295.913 Podložka - Unterlegscheibe - Washer - Rondelle – Arandela 3 6
295dV6 174d 4 17.295.914 Distanční trubka - Distanzrohr - Spacing tube - Tube entretoise - Tubo 1
distanciador
295dV6 174d 5 17.295.915 Čep - Bolzen - Pin - Axe – Perno 1
295dV6 174d 6 17.295.918 Podložka - Unterlegscheibe - Washer - Rondelle – Arandela 1 12
295dV6 174d 7 17.295.919 Matice - Mutter - Nut - Ecrou – Tuerca 2 M 6
295dV6 174d 8 17.295.920 Šroub - Schraube - Bolt - Vis - Tornillo 1 M 6p1x35
295dV6 174d 9 17.295.921 Páka - Hebel - Lever - Levier - Palanca 1
295dV6 174d 10 17.295.922 Pouzdro - Buchse - Bush - Manchon - Buje 1 12x20x26
295dV6 174d 11 17.295.929 Táhlo - Zugstange - Tie rod - Tirant - Tirante 1
295dV6 174d 12 17.295.924 Čepička - Kappe - Cap - Chapeau - Caperuza 2
295dV6 174d 13 17.295.925 Seřizovací matice - Stellmutter - Adjusting nut - Ecrou de réglage - Tuerca de 1
ajuste
295dV6 174d 14 17.295.927 Matice - Mutter - Nut - Ecrou – Tuerca 1 M 8p1,25
295dV6 174d 15 17.295.928 Čep - Bolzen - Pin - Axe – Perno 2
295dV6 174d 16 17.295.202 Držák - Halter - Holder - Support - Soporte 1
295dV6 174d 17 17.295.910 Pojistný kroužek - Sicherungsring - Circlip - Anneau de retenue - Anillo de 1 9
seguridad
295dV6 174d 18 17.295.916 Šroub - Schraube - Bolt - Vis - Tornillo 3 M 6p1x25
295dV6 174d 19 17.295.926 Matice - Mutter - Nut - Ecrou - Tuerca 1 M 6p1
295dV6 174d 20 17.295.923 Táhlo - Zugstange - Tie rod - Tirant - Tirante 1

263
