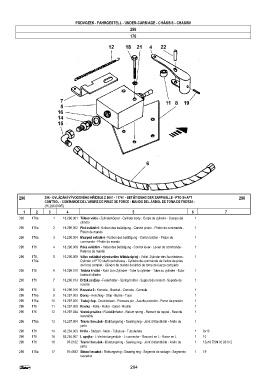

Page 264 - Zetor Forterra II 8641-11741
P. 264

PODVOZEK - FAHRGESTELL - UNDER-CARRIAGE - CHÂSSIS - CHASIS0
                                                           296
                                                           176











































         296         296 - OVLÁDÁNÍ VÝVODOVÉHO HŘÍDELE Z 8641 - 11741 - BETÄTIGUNG DER ZAPFWELLE - PTO SHAFT  296
                     CONTROL - COMMANDE DE L'ARBRE DE PRISE DE FORCE - MANDO DEL ÁRBOL DE TOMA DE FUERZA -
                     (16.296.000/5)
           1     2     3       4                            5                         6              7
         296   176a      1   16.296.001 Těleso válce - Zylinderkörper - Cylinder body - Corps de cylindre - Cuerpo del  1
                                     cilindro
         296   176a      2   16.296.002 Píst ovládání - Kolben des betätigung - Control piston - Piston de commande -  1
                                     Pistón de mando
         296   176a      3   16.296.004 Mezipíst ovládání - Kolben des betätigung - Control piston - Piston de  1
                                     commande - Pistón de mando
         296   176       4   16.296.006 Páka ovládání - Hebel des betätigung - Control lever - Levier de commande -  1
                                     Palanca de mando
         296   176,      5   16.296.009 Válec ovládání vývodového hřídele úplný - Vollst. Zylinder des Ausrücknes -  1
               176a                  Cylinder of PTO shaft control assy - Cylindre de commande de l'arbre de prise
                                     de force complet - Cilindro de mando del árbol de toma de fuerza completo
         296   176       6   16.296.010 Trubka k válci - Rohr zum Zylinder - Tube to cylinder - Tube au cylindre - Tubo  1
                                     hasta el cilindro
         296   176       7   16.296.013 Držák pružiny - Federhalter - Spring holder - Support du ressort - Soporte de  1
                                     resorte
         296   176       8   16.296.016 Konzola 2 - Konsole - Bracket - Console - Consola  1
         296   176a      9   16.297.003 Doraz - Anschlag - Stop - Butée - Tope          1
         296   176a     10   16.297.005 Tlačný čep - Druckbolzen - Pressure pin - Axe de pressión - Perno de presión  1
         296   176      11   16.297.008 Kladka - Rolle - Roller - Galet - Rodillo       1
         296   176      12   16.297.034 Vratná pružina - Rückführfeder - Return spring - Ressort de rappel - Resorte  1
                                     reversible
         296   176a     13   16.297.904 Těsnící kroužek - Dichtungsring - Sealing ring - Joint d’étanchéité - Anillo de  1
                                     junta
         296   176      14   43.234.003 Hrdlo - Stutzen - Neck - Tubulure - Tubuladura  1  8x10
         296   176      15   53.254.907 L spojka - L-Verbindungsstück - L-connector - Raccord en L - Racor en L  1  10
         296   176      16     97-2182 Těsnící kroužek - Dichtungsring - Sealing ring - Joint d’étanchéité - Anillo de  1  12x16 ČSN 02 9310.2
                                     junta
         296   176a     17     97-4582 Stírací kroužek - Reibungsring - Stearing ring - Segment de raclage - Segmento  1  19
                                     rascador
