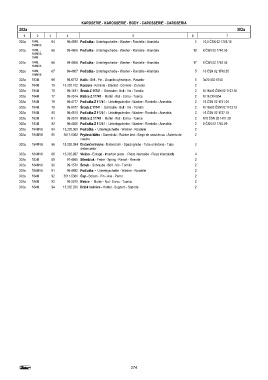

P. 274

KAROSERIE - KAROSSERIE - BODY - CAROSSERIE - CAROSERIA
         302a                                                                                             302a
           1     2     3       4                            5                         6               7
         302a  184M,    64     99-4690 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  5  10,5 ČSN 02 1703.19
               184MV6
         302a  183M, ,  65     99-4805 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  18  6 ČSN 02 1740.05
               184MV6,
               184M
         302a  184M,    66     99-4806 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  17  8 ČSN 02 1740.05
               184MV6
         302a  184M,    67     99-4807 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  5  10 ČSN 02 1740.05
               184MV6
         302a  183M     68     99-6772 Kolík - Stift - Pin - Goupille cylindrique - Pasador  8  3x20 ISO 6740
         302a  184M     75   15.302.102 Konzola - Konsola - Bracket - Console - Consola  2
         302a  184M     76     99-1481 Šroub Z 11741 -  Schraube - Bolt - Vis - Tornillo  2  M 16x40 ČSN 02 1103.55
         302a  184M     77     99-3514 Matice Z 11741 -  Mutter - Nut - Ecrou - Tuerca  2  M 16 DIN 954
         302a  184M     78     99-4777 Podložka Z 11741 -  Unterlegscheibe - Washer - Rondelle - Arandela  2  16 ČSN 02 1741.05
         302a  184M     79     99-9077 Šroub Z 11741 -  Schraube - Bolt - Vis - Tornillo  2  M 16x20 ČSN 02 1103.19
         302a  184M     80     99-4810 Podložka Z 11741 -  Unterlegscheibe - Washer - Rondelle - Arandela  2  16 ČSN 02 1727.19
         302a  183M     81     99-3510 Matice Z 11741 -  Mutter - Nut - Ecrou - Tuerca  2  M 8 ČSN 02 1401.29
         302a  183M     82     99-4506 Podložka Z 11741 -  Unterlegscheibe - Washer - Rondelle - Arandela  2  8 ČSN 02 1740.09
         302a  184MV6   84   15.302.068 Podložka  -  Unterlegscheibe - Washer - Rondelle  2
         302a  184MV6   85   5511-5362 Pryžové lůžko - Gummisitz - Rubber bed - Siege de caoutchouc - Asiento de  2
                                     caucho
         302a  184MV6   86   18.302.094 Distanční trubka - Distanzrohr - Spacing tube - Tube entretoise - Tubo  2
                                     distanciador
         302a  184MV6   88   15.302.997 Vložka - Einlage - Insertion piece  - Pièce intercalée - Pieza intercalada  4
         302a  183M     89     97-4565 Silentblok - Feder - Spring - Resort - Resorte   2
         302a  184MV6   90     99-1570 Šroub -  Schraube - Bolt - Vis - Tornillo        2
         302a  184MV6   91     99-4692 Podložka  -  Unterlegscheibe - Washer - Rondelle  2
         302a  184M     92   5511-5360 Čep - Bolzen - Pin - Axe - Perno                 2
         302a  184M     93     99-3570 Matice  -  Mutter - Nut - Ecrou - Tuerca         2
         302a  184M     94   15.302.230 Držák bočnice - Holder - Support – Soporte      2
















































                                                           274
