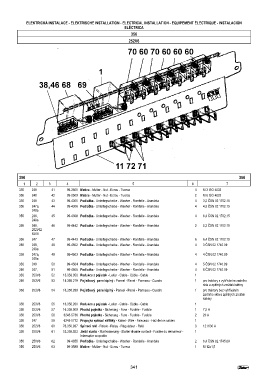

Page 341 - Zetor Forterra II 8641-11741
P. 341

ELEKTRICKÁ INSTALACE - ELEKTRISCHE INSTALLATION - ELECTRICAL INSTALLATION - EQUIPEMENT ÉLECTRIQUE - INSTALACIÓN
                                                        ELÉCTRICA
                                                           356
                                                          252V6



































         356                                                                                               356
           1     2     3       4                            5                         6               7
         356   248      41     99-3505 Matice - Mutter - Nut - Ecrou - Tuerca           4  M 3 ISO 4032
         356   248      42     99-3509 Matice - Mutter - Nut - Ecrou - Tuerca           2  M 6 ISO 4032
         356   248      43     99-4305 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  3,2 ČSN 02 1702.15
         356   247a,    44     99-4306 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  4,3 ČSN 02 1702.15
               249a
         356   248,     45     99-4308 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  6,4 ČSN 02 1702.15
               249a
         356   249,     46     99-4442 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  2  5,3 ČSN 02 1702.19
               252V62
               53V6
         356   247      47     99-4443 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  6  6,4 ČSN 02 1702.19
         356   248,     48     99-4502 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  3 ČSN 02 1740.09
               249a
         356   247a,    49     99-4503 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  4 ČSN 02 1740.09
               249a
         356   249      50     99-4504 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  5 ČSN 02 1740.09
         356   247,     51     99-4505 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  4  6 ČSN 02 1740.09
         356   253V6    52   15.358.050 Redukce z pojistek - Leiter - Cable - Cáble - Cable  1
         356   253V6    53   15.358.219 Pojistkový  panel úplný - Paneel - Panel - Panneau - Cuadro  1  pro traktory s vyhříváním zadního
                                                                                           skla a zpětných zrcátek kabiny
         356   253V6    54   16.358.299 Pojistkový  panel úplný - Paneel - Panel - Panneau - Cuadro  1  pro traktory bez vyhříváním
                                                                                           zadního skla a zpětných zrcátek
                                                                                           kabiny
         356   253V6    55   16.358.260 Redukce z pojistek - Leiter - Cable - Cáble - Cable  1
         356   253V6    57   16.359.909 Plochá pojistka - Sicherung - Fuse - Fusible - Fusible  1  7,5 A
         356   253V6    58   6245-5736 Plochá pojistka - Sicherung - Fuse - Fusible - Fusible  2  20 A
         356   247      59   6245-5772 Propojka spínací skříňky - Kabel - Wire - Faisceau - Haz de los cables  1
         356   252V6    60   78.350.937 Spínací relé - Relais - Relay - Régulateur - Relé  3  12 V/30 A
         356   250V6    61   53.359.923 Jistič startu - Startsicherung - Starter disable contact - Fusible du démarreur -  1
                                     Interruptor acopable
         356   250V6    62     99-4655 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  2  6,4 ČSN 02 1745.09
         356   250V6    63     99-3589 Matice - Mutter - Nut - Ecrou - Tuerca           1  M 12x1,5
