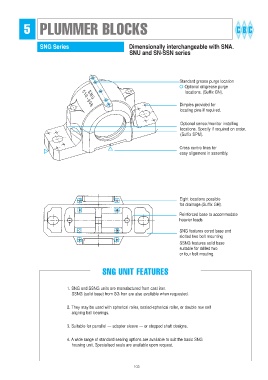

5 PLUMMER BLOCKS
SNG Series Dimensionally interchangeable with SNA.
SNU and SN-SSN series
Standard grease purge location
Optional oil/grease purge
locations. (Suffix GN).
Dimples provided for
locating pins if required.
Optional sensor/monitor installing
locations. Specify if required on order.
(Suffix SPM).
Cross centre lines for
easy alignment in assembly.
Eight locations possible
for drainage.(Suffix GH).
Reinforced base to accommodate
heavier loads
SNG features cored base and
slotted two bolt mounting
SSNG features solid base
suitable for drilled two
or four bolt mouting.
SNG UNIT FEATURES
1. SNG and SSNG units are manufactured from cast iron.
SSNG (solid base) from SG Iron are also available when requested.
2. They may be used with spherical roller, sealed-spherical roller, or double row self
aligning ball bearings.
3. Suitable for parrallel — adapter sleeve — or stepped shaft designs.
4. A wide range of standard sealing options are available to suit the basic SNG
housing unit. Specialised seals are available upon request.
