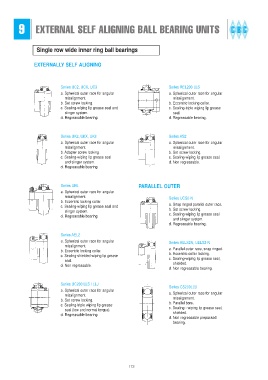

9 EXTERNAL SELF ALIGNING BALL BEARING UNITS
Single row wide inner ring ball bearings
EXTERNALLY SELF ALIGNING
Series UC2, UCX, UC3 Series REL200 LLS
a. Spherical outer race for angular a. Spherical outer race for angular
misalignment. misalignment.
b. Set screw locking. b. Eccentric locking collar.
c. Sealing-wiping lip grease seal and c. Sealing-triple wiping lip grease
slinger system. seal.
d. Regreasable bearing. d. Regreasable bearing.
Series UK2, UKX, UK3 Series AS2
a. Spherical outer race for angular a. Spherical outer race for angular
misalignment. misalignment.
b. Adapter screw locking. b. Set screw locking.
c. Sealing-wiping lip grease seal c. Sealing-wiping lip grease seal.
and slinger system. d. Non regreasable.
d. Regreasable bearing.
Series UEL PARALLEL OUTER
a. Spherical outer race for angular
misalignment.
Series UCS2-N
b. Eccentric locking collar.
a. Snap ringed parallel outer race.
c. Sealing-wiping lip grease seal and
slinger system. b. Set screw locking.
d. Regreasable bearing. c. Sealing-wiping lip grease seal
and slinger system.
d. Regreasable bearing.
Series AEL2
a. Spherical outer race for angular Series AELS2N, UELS2-N
misalignment.
b. Eccentric locking collar. a. Parallel outer race, snap ringed.
b. Eccentric collar locking.
c. Sealing-shielded wiping lip grease
c. Sealing-wiping lip grease seal,
seal.
d. Non regreasable. shielded.
d. Non regreasable bearing.
Series UC200 LLS / LLJ
Series CS200LLU
a. Spherical outer race for angular
misalignment. a. Spherical outer race for angular
b. Set screw locking. misalignment.
c. Sealing-triple wiping lip grease b. Parallel bore.
c. Sealing - wiping lip grease seal,
seal (low and normal torque).
d. Regreasable bearing. shielded.
d. Non regreasable prepacked
bearing.
172
