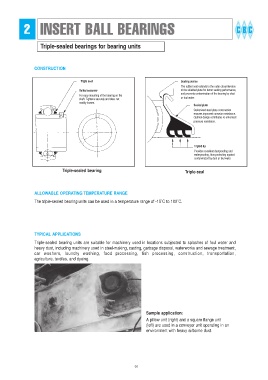

2 2 INSERT BALL BEARINGS

Triple-sealed bearings for bearing units

CONSTRUCTION

Triple seal Sealing device
The rubber seal extends to the outer circumference
Balled setscrew of the shielded plate for better sealing performance,
and prevents contamination of the bearing by dust
For easy mounting of the bearing on the
shaft. Tightens securely and does not or foul water.
readily loosen.
Sealed plate
Galvanized steel plate construction
ensures improved corrosion resistance.
Optimal design contributes to enhanced
pressure resistance.

Tripled-lip
Provides excellent dustproofing and
waterproofing, thus protecting against
contaminated by dust or foul water.

Triple-sealed bearing Triple-seal

ALLOWABLE OPERATING TEMPERATURE RANGE
The triple-sealed bearing units can be used in a temperature range of -15˚C to 100˚C.

TYPICAL APPLICATIONS

Triple-sealed bearing units are suitable for machinery used in locations subjected to splashes of foul water and
heavy dust, including machinery used in steel-making, casting, garbage disposal, waterworks and sewage treatment,
car washers, laundry washing, food processing, fish processing, construction, transportation,
agriculture, textiles, and dyeing.

Sample application:
A pillow unit (right) and a square flange unit
(left) are used in a conveyor unit operating in an
environment with heavy airborne dust.

91
