Roller followers: Yoke-type track rollers
NTN

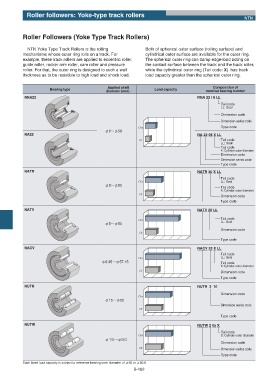

Roller Followers (Yoke Type Track Rollers)

NTN Yoke Type Track Rollers is the rolling Both of spherical outer surface (rolling surface) and
mechanisms whose outer ring rolls on a track. For cylindrical outer surface are available for the outer ring.
example, these track rollers are applied to eccentric roller, The spherical outer ring can damp edge-load acting on
guide roller, rocker arm roller, cam roller and pressure the contact surface between the track and the track roller,
roller. For that, the outer ring is designed to such a wall while the cylindrical outer ring (Tail code: X) has track
thickness as to be resistible to high load and shock load. load capacity greater than the spherical outer ring.

Applied shaft Composition of
Bearing type diameter (mm) Load capacity nominal bearing number

RNA22 RNA 22 / 6 LL
Tail code
LL: Seal
Dimension code
Dimension series code
Cor Type code
П6ʙП58
NA22 NA 22 06 X LL
Cr Tail code
LL: Seal
Tail code
X: Cylinder outer diameter
Dimension code
Dimension series code
Type code
NATR NATR 30 X LL
Tail code
Cor LL: Seal
П5ʙП50
Tail code
X: Cylinder outer diameter
Cr
Dimension code
Type code
NATV NATV 25 LL
Tail code
Cor LL: Seal
П5ʙП50
Dimension code
Cr
Type code
NACV NACV 32 X LL
Tail code
Cor LL: Seal
П6.35ʙП57.15 Tail code
X: Cylinder outer diameter
Cr
Dimension code
Type code
NUTR NUTR 3 10
Dimension code
Cor
П15ʙП50
Dimension series code
Cr
Type code
NUTW NUTW 2 05 X

Tail code
Cor X: Cylinder outer diameter
П ʙП
Dimension code
Cr
Dimension series code
Type code
Each listed load capacity is subject to reference bearing bore diameter of П50 or П50.8
B-162
