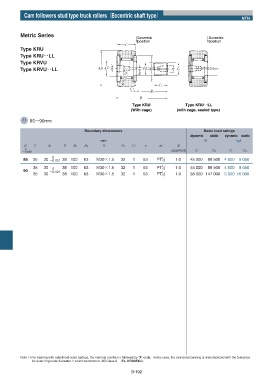

Cam followers stud type truck rollersʢEccentric shaft typeʣ
NTN

Metric Series
Eccentric Eccentric
position position
Type KRU
Type KRUʝʝLL
Type KRVU
Type KRVUʝʝLL

Type KRU Type KRUʝLL
(With cage) (with cage, sealed type)

D 85ʙ90mm

Boundary dimensions Basic load ratings
dynamic static dynamic static
mm N kgf
D C d1 F B1 B2 G G1 C1 e m E
0 eccentricity
ʵ0.050 Cr Cor Cr Cor
0
85 35 30 ʵ0.021 38 100 63 M30ʷ1.5 32 1 53 PT!/8 1.0 45 000 88 500 4 600 9 050
35 30 0 38 100 63 M30ʷ1.5 32 1 53 PT!/8 1.0 45 000 88 500 4 600 9 050
90 ʵ0.021
35 30 38 100 63 M30ʷ1.5 32 1 53 PT!/8 1.0 58 000 147 000 5 900 15 000

Note 1) For bearing with cylindrical outer surface, the nominal number is followed by “X” code. In this case, the cylindrical bearing is manufactured with the tolerance
for outer ring outer diameter D which conforms to JIS Class-0. Ex. KRU85XLL
B-192
