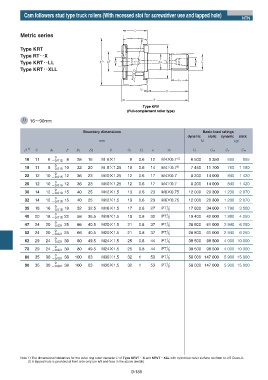

Cam followers stud type truck rollers (With recessed slot for screwdriver use and tapped hole)
NTN

Metric series

Type KRT
Type RTʝʝX
Type KRTʝʝLL
Type KRTʝʝXLL

Type KRV
(Full-complement roller type)

D 16ʙ90mm

Boundary dimensions Basic load ratings
dynamic static dynamic static
mm N kgf
D 1) C d1 F B1 B2 G G1 C1 e m Cr Cor Cr Cor
0
16 11 6 ʵ0.012 8 28 16 M 6ʷ1 8 0.6 12 M4ʷ0.7 2) 6 500 9 350 665 955
0
19 11 8 ʵ0.015 10 32 20 M 8ʷ1.25 10 0.6 14 M4ʷ0.7 2) 7 450 11 700 760 1 190
0
22 12 10 ʵ0.015 12 36 23 M10ʷ1.25 12 0.6 17 M4ʷ0.7 8 200 14 000 840 1 420
0
26 12 10 ʵ0.015 12 36 23 M10ʷ1.25 12 0.6 17 M4ʷ0.7 8 200 14 000 840 1 420
0
30 14 12 ʵ0.018 15 40 25 M12ʷ1.5 13 0.6 23 M6ʷ0.75 12 000 20 300 1 230 2 070
0
32 14 12 ʵ0.018 15 40 25 M12ʷ1.5 13 0.6 23 M6ʷ0.75 12 000 20 300 1 230 2 070
0
35 18 16 ʵ0.018 18 52 32.5 M16ʷ1.5 17 0.8 27 PT!/8 17 600 34 000 1 790 3 500
0
40 20 18 ʵ0.018 22 58 36.5 M18ʷ1.5 19 0.8 32 PT!/8 19 400 42 000 1 980 4 250
0
47 24 20 ʵ0.021 25 66 40.5 M20ʷ1.5 21 0.8 37 PT!/8 28 800 61 000 2 940 6 250
0
52 24 20 ʵ0.021 25 66 40.5 M20ʷ1.5 21 0.8 37 PT!/8 28 800 61 000 2 940 6 250
0
62 29 24 ʵ0.021 30 80 49.5 M24ʷ1.5 25 0.8 44 PT!/8 39 500 98 500 4 000 10 000
0
72 29 24 ʵ0.021 30 80 49.5 M24ʷ1.5 25 0.8 44 PT!/8 39 500 98 500 4 000 10 000
0
80 35 30 ʵ0.021 38 100 63 M30ʷ1.5 32 1 53 PT!/8 58 000 147 000 5 900 15 000
0
90 35 30 ʵ0.021 38 100 63 M30ʷ1.5 32 1 53 PT!/8 58 000 147 000 5 900 15 000

Note 1) The dimensional tolerances for the outer ring outer diameter D of Type KRVTŋŋŋŋX and KRVTŋŋŋŋXLL with cylindrical outer surface conform to JIS Class-0.
2) A tapped hole is provided at front side only (on left end-face in the above sketch).
