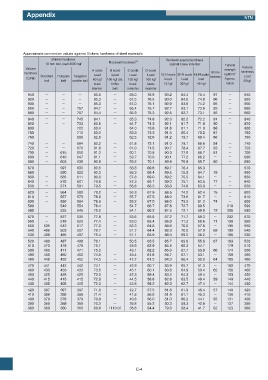

Approximate conversion values against Vickers hardness of steel materials
Brinnel hardness Rockwell special hardness
Rockwell hardness 2ʣ
10 mm ball, load 3000 kgf special brake indenter Tensile
Vickers strength Vickers
A scale B scale C-scale D-scale
hardness 15-N scale 30-N scale 45-N scale Shore kgf/mm 2 hardness
Standard Hultgren Tungsten Load Load Load Load hardness Load
ʢDPHʣ 60 kgf 100 kgf dia. 150 kgf 100 kgf Load Load load Approx.
ball ball carbite ball 50kgf
brale 1/16in. brale brale 15 kgf 30 kgf 45 kgf value
identer ball indenter indenter
940 ʵ ʵ ʵ 85.6 ʵ 68.0 76.9 93.2 84.4 75.4 97 ʵ 940
920 ʵ ʵ ʵ 85.3 ʵ 67.5 76.5 93.0 84.0 74.8 96 ʵ 920
900 ʵ ʵ ʵ 85.0 ʵ 67.0 76.1 92.9 83.6 74.2 95 ʵ 900
880 ʵ ʵ 767 84.7 ʵ 66.4 75.7 92.7 83.1 73.6 93 ʵ 880
860 ʵ ʵ 757 84.4 ʵ 65.9 75.3 92.5 82.7 73.1 92 ʵ 860
840 ʵ ʵ 745 84.1 ʵ 65.3 74.8 92.3 82.2 72.2 91 ʵ 840
820 ʵ ʵ 733 83.8 ʵ 64.7 74.3 92.1 81.7 71.8 90 ʵ 820
800 ʵ ʵ 722 83.4 ʵ 64.0 73.8 91.8 81.1 71.0 88 ʵ 800
780 ʵ ʵ 710 83.0 ʵ 63.3 73.3 91.5 80.4 70.2 87 ʵ 780
760 ʵ ʵ 698 82.6 ʵ 62.5 72.6 91.2 79.7 69.4 86 ʵ 760
740 ʵ ʵ 684 82.2 ʵ 61.8 72.1 91.0 79.1 68.6 84 ʵ 740
720 ʵ ʵ 670 81.8 ʵ 61.0 71.5 90.7 78.4 67.7 83 ʵ 720
700 ʵ 615 656 81.3 ʵ 60.1 70.8 90.3 77.6 66.7 81 ʵ 700
690 ʵ 610 647 81.1 ʵ 59.7 70.5 90.1 77.2 66.2 ʵ ʵ 690
680 ʵ 603 638 80.8 ʵ 59.2 70.1 89.8 76.8 65.7 80 ʵ 680
670 ʵ 597 630 80.5 ʵ 58.8 69.8 89.7 76.4 65.3 ʵ ʵ 670
660 ʵ 590 620 80.3 ʵ 58.3 69.4 89.5 75.9 64.7 79 ʵ 660
650 ʵ 585 611 80.0 ʵ 57.8 69.0 89.2 75.5 64.1 ʵ ʵ 650
640 ʵ 578 601 79.8 ʵ 57.3 68.7 89.0 75.1 63.5 77 ʵ 640
630 ʵ 571 591 79.5 ʵ 56.8 68.3 88.8 74.6 63.0 ʵ ʵ 630
620 ʵ 564 582 79.2 ʵ 56.3 67.9 88.5 74.2 62.4 75 ʵ 620
610 ʵ 557 573 78.9 ʵ 55.7 67.5 88.2 73.6 61.7 ʵ ʵ 610
600 ʵ 550 564 78.6 ʵ 55.2 67.0 88.0 73.2 61.2 74 ʵ 600
590 ʵ 542 554 78.4 ʵ 54.7 66.7 87.8 72.7 60.5 ʵ 210 590
580 ʵ 535 545 78.0 ʵ 54.1 66.2 87.5 72.1 59.9 72 206 580
570 ʵ 527 535 77.8 ʵ 53.6 65.8 87.2 71.7 59.3 ʵ 202 570
560 ʵ 519 525 77.4 ʵ 53.0 65.4 86.9 71.2 58.6 71 199 560
550 505 512 517 77.0 ʵ 52.3 64.8 86.6 70.5 57.8 ʵ 195 550
540 496 503 507 76.7 ʵ 51.7 64.4 86.3 70.0 57.0 69 190 540
530 488 495 497 76.4 ʵ 51.1 63.9 86.0 69.5 56.2 ʵ 186 530
520 480 487 488 76.1 ʵ 50.5 63.5 85.7 69.0 55.6 67 183 520
510 473 479 479 75.7 ʵ 49.8 62.9 85.4 68.3 54.7 ʵ 179 510
500 465 471 471 75.3 ʵ 49.1 62.2 85.0 67.7 53.9 66 174 500
490 456 460 460 74.9 ʵ 48.4 61.6 84.7 67.1 53.1 ʵ 169 490
480 448 452 452 74.5 ʵ 47.7 61.3 84.3 66.4 52.2 64 165 480
470 441 442 442 74.1 ʵ 46.9 60.7 83.9 65.7 51.3 ʵ 160 470
460 433 433 433 73.6 ʵ 46.1 60.1 83.6 64.9 50.4 62 156 460
450 425 425 425 73.3 ʵ 45.3 59.4 83.2 64.3 49.4 ʵ 153 450
440 415 415 415 72.8 ʵ 44.5 58.8 82.8 63.5 48.4 59 149 440
430 405 405 405 72.3 ʵ 43.6 58.2 82.3 62.7 47.4 ʵ 144 430
420 397 397 397 71.8 ʵ 42.7 57.5 81.8 61.9 46.4 57 140 420
410 388 388 388 71.4 ʵ 41.8 56.8 81.4 61.1 45.3 ʵ 136 410
400 379 379 379 70.8 ʵ 40.8 56.0 81.0 60.2 44.1 55 131 400
390 369 369 369 70.3 ʵ 39.8 55.2 80.3 59.3 42.9 ʵ 127 390
380 360 360 360 69.8 ʢ110.0ʣ 38.8 54.4 79.8 58.4 41.7 52 123 380
