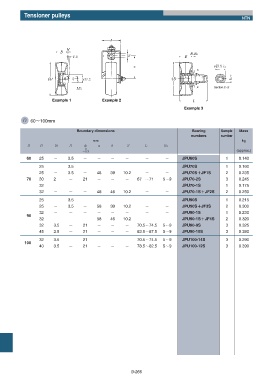

Page 328 - needle bearings

Tensioner pulleys
NTN

Section x-x

Example 1 Example 2

Example 3

D 60ʙ100mm

Boundary dimensions Bearing Sample Mass
numbers number
mm kg
D B B1 H d1 a b S L B2
0
ʵ0.3 (approx.)
60 25 ʵ 3.5 ʵ ʵ ʵ ʵ ʵ ʵ JPU60S 1 0.140

25 ʵ 3.5 ʵ ʵ ʵ ʵ ʵ ʵ JPU70S 1 0.160
25 ʵ 3.5 ʵ 48 39 10.2 ʵ ʵ JPU70SʴʴJF1S 2 0.235
70 30 2 ʵ 21 ʵ ʵ ʵ 67 ʙ71 5ʙ9 JPU70-2S 3 0.245
32 ʵ ʵ ʵ ʵ ʵ ʵ ʵ ʵ JPU70-1S 1 0.175
32 ʵ ʵ ʵ 48 46 10.2 ʵ ʵ JPU70-1SʴʴJF2S 2 0.250
25 ʵ 3.5 ʵ ʵ ʵ ʵ ʵ ʵ JPU90S 1 0.215
25 ʵ 3.5 ʵ 58 39 10.2 ʵ ʵ JPU90SʴʴJF3S 2 0.300
32 ʵ ʵ ʵ ʵ ʵ ʵ ʵ ʵ JPU90-1S 1 0.230
90
32 ʵ ʵ ʵ 58 46 10.2 ʵ ʵ JPU90-1SʴʴJF4S 2 0.320
32 3.5 ʵ 21 ʵ ʵ ʵ 70.5ʙ74.5 5ʙ9 JPU90-9S 3 0.325
45 3.5 ʵ 21 ʵ ʵ ʵ 83.5ʙ87.5 5ʙ9 JPU90-10S 3 0.380
32 3.5 ʵ 21 ʵ ʵ ʵ 70.5ʙ74.5 5ʙ9 JPU100-14S 3 0.290
100
40 3.5 ʵ 21 ʵ ʵ ʵ 78.5ʙ82.5 5ʙ9 JPU100-12S 3 0.390

B-266
