P. 267

PODVOZEK - FAHRGESTELL - UNDER-CARRIAGE - CHÂSSIS - CHASIS0
                                                          295d

                                                          174d

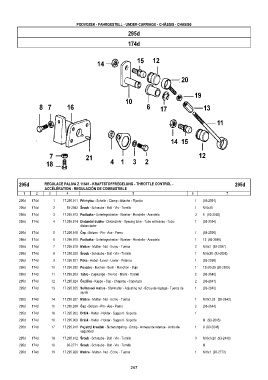

         295d        REGULACE PALIVA Z 11641 - KRAFTSTOFFREGELUNG - THROTTLE CONTROL -                   295d
                     ACCÉLÉRATION - REGULACIÓN DE COMBUSTIBLE
           1     2     3       4                            5                         6               7
         295d  174d      1   17.295.911 Příchytka - Schelle - Clamp - Attache - Fijación  1  (93-2591)
         295d  174d      2     93-2592 Šroub - Schraube - Bolt - Vis - Tornillo         1  M 6x25
         295d  174d      3   17.295.913 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  3  6   (93-2593)
         295d  174d      4   17.295.914 Distanční trubka - Distanzrohr - Spacing tube - Tube entretoise - Tubo  1  (93-2594)
                                     distanciador
         295d  174d      5   17.295.915 Čep - Bolzen - Pin - Axe - Perno                1  (93-2595)
         295d  174d      6   17.295.918 Podložka - Unterlegscheibe - Washer - Rondelle - Arandela  1  12  (93-2596)
         295d  174d      7   17.295.919 Matice - Mutter - Nut - Ecrou - Tuerca          2  M 6x1  (93-2597)
         295d  174d      8   17.295.920 Šroub - Schraube - Bolt - Vis - Tornillo        1  M 6x35  (93-2598)
         295d  174d      9   17.295.921 Páka - Hebel - Lever - Levier - Palanca         1  (93-2599)
         295d  174d     10   17.295.922 Pouzdro - Buchse - Bush - Manchon - Buje        1  12x20x26 (93-2639)
         295d  174d     11   17.295.923 Táhlo - Zugstange - Tie rod - Tirant - Tirante  2  (93-2640)
         295d  174d     12   17.295.924 Čepička - Kappe - Cap - Chapeau - Caperuza      2  (93-2641)
         295d  174d     13   17.295.925 Seřizovací matice - Stellmutter - Adjusting nut - Ecrou de réglage - Tuerca de  1  (93-2642)
                                     ajuste
         295d  174d     14   17.295.927 Matice - Mutter - Nut - Ecrou - Tuerca          1  M 8x1,25   (93-2643)
         295d  174d     15   17.295.928 Čep - Bolzen - Pin - Axe - Perno                2  (93-2644)
         295d  174d     16   17.295.202 Držák - Halter - Holder - Support - Soporte     1
         295d  174d     16   17.295.909 Držák - Halter - Holder - Support - Soporte        X   (93-2645)
         295d  174d     17   17.295.910 Pojistný kroužek - Sicherungsring - Circlip - Anneau de retenue - Anillo de  1  9  (93-2646)
                                     seguridad
         295d  174d     18   17.295.912 Šroub - Schraube - Bolt - Vis - Tornillo        3  M 6x1x20  (93-2440)
         295d  174d     18     93-2771 Šroub - Schraube - Bolt - Vis - Tornillo            X
         295d  174d     19   17.295.926 Matice - Mutter - Nut - Ecrou - Tuerca          1  M 6x1  (93-2773)


                                                           267
