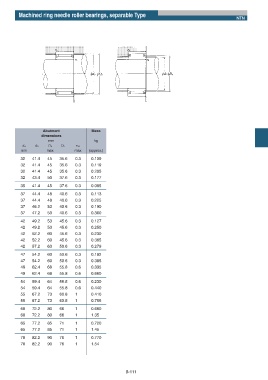

Page 173 - needle bearings

Machined ring needle roller bearings, separable Type
NTN

Abutment Mass
dimensions
mm kg
da db Da Db ras
min max max (approx.)
32 41.4 45 35.6 0.3 0.109
32 41.4 45 35.6 0.3 0.119
32 41.4 45 35.6 0.3 0.205
32 43.4 50 37.6 0.3 0.177
35 41.4 45 37.6 0.3 0.085
37 44.4 48 40.6 0.3 0.113
37 44.4 48 40.6 0.3 0.225
37 46.2 53 40.6 0.3 0.190
37 47.2 53 40.6 0.3 0.360

42 49.2 53 45.6 0.3 0.127
42 49.2 53 45.6 0.3 0.250
42 52.2 60 45.6 0.3 0.230
42 52.2 60 45.6 0.3 0.385
42 57.2 63 50.6 0.3 0.279
47 54.2 60 50.6 0.3 0.192
47 54.2 60 50.6 0.3 0.385
49 62.4 68 55.8 0.6 0.335
49 62.4 68 55.8 0.6 0.660
54 59.4 64 55.8 0.6 0.230
54 59.4 64 55.8 0.6 0.440
55 67.2 73 60.8 1 0.410
55 67.2 73 60.8 1 0.755
60 72.2 80 66 1 0.680
60 72.2 80 66 1 1.35
65 77.2 85 71 1 0.720
65 77.2 85 71 1 1.45
70 82.2 90 76 1 0.770
70 82.2 90 76 1 1.54

B-111
