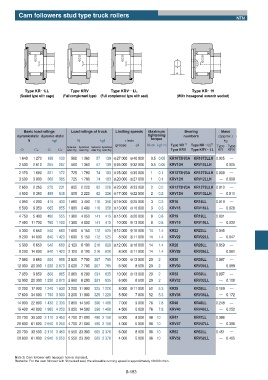

Page 245 - needle bearings

Cam followers stud type truck rollers
NTN

h

Type KRʝLL Type KRV Type KRVʝLL Type KRʝH
(Sealed type with cage) (Full complement type) (Full complement type with seal) (With hexagonal wrench socket)

Basic load ratings Load ratings of truck Limiting speeds Maximum Bearing Mass Stud
dynamicstatic dynamic static tightening numbers (approx.) diameter
N kgf N kgf r /min torque kg mm
grease oil Nŋm kgfŋm Type NR 1) Type NRʝʝLL 1) Type Type
Spherical Cylindrical Spherical Cylindrical
Cr Cor Cr Cor outer ring outer ring outer ring outer ring Type KRV Type KRVʝʝLL KR KRV
1 640 1 270 168 130 560 1 360 57 139 ˞27 000 ˞40 000 0.5 0.05 KR10T2H/3A KR10T2LLH 0.005 ʕ 3
2 500 2 610 255 267 560 1 360 57 139 ˞25 000 ˞32 000 0.5 0.05 KRV10H KRV10LLH ʕ 0.005 3
2 170 1 690 221 172 725 1 790 74 183 ˞25 000 ˞36 000 1 0.1 KR12T2H/3A KR12T2LLH 0.008 ʕ 4
3 500 3 800 360 385 725 1 790 74 183 ˞20 000 ˞27 000 1 0.1 KRV12H KRV12LLH ʕ 0.008 4
2 650 2 260 270 231 805 2 220 82 226 ˞23 000 ˞33 000 2 0.2 KR13T2H/3A KR13T2LLH 0.010 ʕ 5
4 500 5 350 455 545 805 2 220 82 226 ˞17 000 ˞22 000 2 0.2 KRV13H KRV13LLH ʕ 0.011 5
4 050 4 200 415 430 1 080 3 400 110 350 ˞19 000 ˞25 000 3 0.3 KR16 KR16LL 0.019 ʕ 6
6 500 9 350 665 955 1 080 3 400 110 350 ˞13 000 ˞16 000 3 0.3 KRV16 KRV16LL ʕ 0.020 6
4 750 5 400 480 555 1 380 4 050 141 415 ˞15 000 ˞20 000 8 0.8 KR19 KR19LL 0.031 ʕ 8
7 450 11 700 760 1 190 1 380 4 050 141 415 10 000 ˞13 000 8 0.8 KRV19 KRV19LL ʕ 0.032 8
5 300 6 650 540 680 1 690 5 150 172 525 ˞12 000 ˞16 000 14 1.4 KR22 KR22LL 0.046 ʕ 10
8 200 14 000 840 1 420 1 690 5 150 172 525 8 500 ˞11 000 14 1.4 KRV22 KRV22LL ʕ 0.047 10
5 300 6 650 540 680 2 120 6 100 216 620 ˞12 000 ˞16 000 14 1.4 KR26 KR26LL 0.059 ʕ 10
8 200 14 000 840 1 420 2 120 6 100 216 620 8 500 ˞11 000 14 1.4 KRV26 KRV26LL ʕ 0.061 10
7 850 9 650 800 985 2 620 7 700 267 785 10 000 ˞13 000 20 2 KR30 KR30LL 0.087 ʕ 12
12 000 20 300 1 230 2 070 2 620 7 700 267 785 6 500 8 500 20 2 KRV30 KRV30LL ʕ 0.089 12
7 850 9 650 800 985 2 860 8 200 291 835 10 000 ˞13 000 20 2 KR32 KR32LL 0.097 ʕ 12
12 000 20 300 1 230 2 070 2 860 8 200 291 835 6 500 8 500 20 2 KRV32 KRV32LL ʕ 0.100 12
12 200 17 900 1 240 1 830 3 200 11 900 325 1 220 8 000 ˞11 000 52 5.3 KR35 KR35LL 0.169 ʕ 16
17 600 34 000 1 790 3 500 3 200 11 900 325 1 220 5 500 7 000 52 5.3 KRV35 KRV35LL ʕ 0.172 16
14 000 22 800 1 430 2 330 3 850 14 500 390 1 480 7 000 9 000 76 7.8 KR40 KR40LL 0.248 ʕ 18
19 400 42 000 1 980 4 250 3 850 14 500 390 1 480 4 500 6 000 76 7.8 KRV40 KRV40LL ʕ 0.252 18
20 700 33 500 2 110 3 450 4 700 21 000 480 2 150 6 000 8 000 98 10 KR47 KR47LL 0.386 ʕ 20
28 800 61 000 2 940 6 250 4 700 21 000 480 2 150 4 000 5 000 98 10 KRV47 KRV47LL ʕ 0.390 20
20 700 33 500 2 110 3 450 5 550 23 300 565 2 370 6 000 8 000 98 10 KR52 KR52LL 0.461 ʕ 20
28 800 61 000 2 940 6 250 5 550 23 300 565 2 370 4 000 5 000 98 10 KRV52 KRV52LL ʕ 0.465 20

Note 3) Cam follower with hexagon hole is standard.
Remarks: For the cam follower with ˞marked seal, the allowable running speed is approximately 10 000 r/min.
B-183
