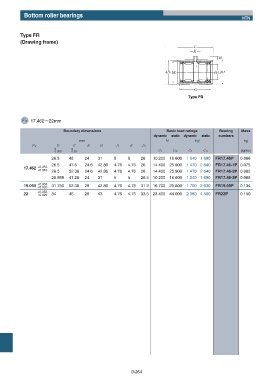

Page 326 - needle bearings

Bottom roller bearings
NTN

Type FR
(Drawing frame)

Type FR

FW 17.462ʙ22mm

Boundary dimensions Basic load ratings Bearing Mass
dynamic static dynamic static numbers
mm N kgf kg
Fw D C E G H K D1
0 0
ʵ0.050 ʵ0.20 Cr Cor Cr Cor (approx.)
26.5 46 24 31 5 5 26 10 200 16 600 1 040 1 690 FR17.46P 0.066
26.5 47.6 24.6 42.86 4.76 4.76 26 14 400 25 900 1 470 2 640 FR17.46-1P 0.075
17.462 +0.053
+0.010 26.5 52.38 24.6 42.86 4.76 4.76 26 14 400 25 900 1 470 2 640 FR17.46-2P 0.082
26.988 41.28 24 31 5 5 26.5 10 200 16 600 1 040 1 690 FR17.46-3P 0.068
19.050 +0.053 31.750 52.38 28 42.86 4.76 4.76 31.2 16 700 25 800 1 700 2 630 FR19.05P 0.134
+0.020
+0.053
22 +0.020 34 46 28 43 4.76 4.76 33.5 23 400 44 000 2 380 4 500 FR22P 0.150

B-264
