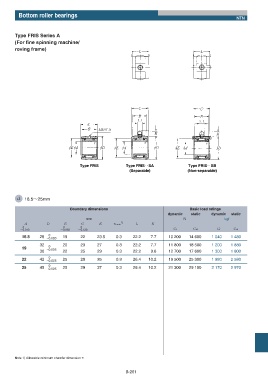

Bottom roller bearings
NTN

Type FRIS Series A
(For fine spinning machine/
roving frame)

Type FRIS Type FRISʝSA Type FRISʝSB
(Separable) (Non-separable)

d 16.5ʙ25mm
Boundary dimensions Basic load ratings
dynamic static dynamic static
mm N kgf
d D B C E rs min 1) L K
0 0 0
ʵ0.010 ʵ0.050 ʵ0.120 Cr Cor Cr Cor
0
16.5 28 –0.020 19 22 23.5 0.3 22.2 7.7 10 200 14 600 1 040 1 480
32 0 20 23 27 0.3 22.2 7.7 11 800 18 500 1 200 1 880
19 –0.025
36 22 25 29 0.3 22.2 9.8 12 700 17 600 1 300 1 800
0
22 42 –0.025 25 29 35 0.3 26.4 10.2 19 500 25 300 1 980 2 580
0
25 45 –0.025 25 29 37 0.3 26.4 10.2 21 300 29 100 2 170 2 970

Note 1) Allowable minimum chamfer dimension r.

B-261
