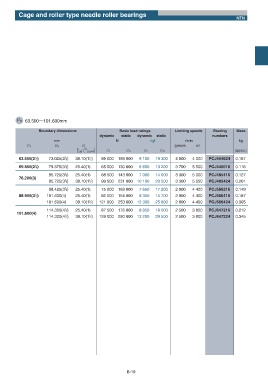

Cage and roller type needle roller bearings
NTN

FW 63.500ʙ101.600mm

Boundary dimensions Basic load ratings Limiting speeds Bearing Mass
dynamic static dynamic static numbers
mm N kgf r/min kg
Fw Ew Bc grease oil
0 0 ʣ
ʵ0.35 ʢ ʵ0.014 Cr Cor Cr Cor (approx.)
63.500(2!/2) 73.025(2&/8) 38.10(1!/2) 89 000 189 000 9 100 19 300 4 000 4 000 PCJ404624 0.167

69.850(2#/4) 79.375(3!/8) 25.40(1) 65 000 130 000 6 650 13 200 3 700 5 500 PCJ445016 0.116
85.725(3#/8) 25.40(1) 68 500 143 000 7 000 14 600 3 300 5 000 PCJ485416 0.127
76.200(3)
85.725(3#/8) 38.10(1!/2) 99 500 231 000 10 100 23 500 3 300 5 000 PCJ485424 0.201
98.425(3&/8) 25.40(1) 75 000 169 000 7 650 17 200 2 900 4 400 PCJ566216 0.149
88.900(3!/2) 101.600(4) 25.40(1) 82 000 154 000 8 350 15 700 2 900 4 400 PCJ566416 0.187
101.600(4) 38.10(1!/2) 121 000 253 000 12 300 25 800 2 900 4 400 PCJ566424 0.305

114.300(4!/2) 25.40(1) 87 500 176 000 8 950 18 000 2 500 3 800 PCJ647216 0.212
101.600(4)
114.300(4!/2) 38.10(1!/2) 129 000 290 000 13 200 29 500 2 500 3 800 PCJ647224 0.345

B-19
