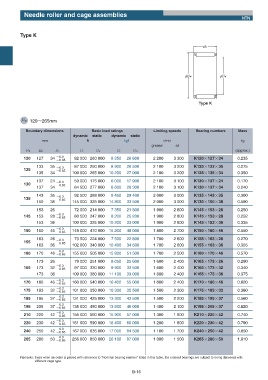

Page 78 - needle bearings

Needle roller and cage assemblies
NTN

Type K

Bc

ПEW ПFW

Type K

FW 120ʙ265mm

Boundary dimensions Basic load ratings Limiting speeds Bearing numbers Mass
dynamic static dynamic static
mm N kgf r/min kg
grease oil
Fw Ew Bc Cr Cor Cr Cor (approx.)
120 127 34 ʵ0.3 82 000 260 000 8 350 26 600 2 200 3 300 K120ʷ127ʷ34 0.235
ʵ0.65
133 35 ʵ0.3 87 000 260 000 8 900 26 500 2 100 3 200 K125ʷ133ʷ35 0.275
125 ʵ0.65
135 34 100 000 265 000 10 200 27 000 2 100 3 200 K125ʷ135ʷ34 0.350
137 24 ʵ0.3 59 000 175 000 6 000 17 900 2 100 3 100 K130ʷ137ʷ24 0.170
130 ʵ0.65
137 34 84 500 277 000 8 600 28 300 2 100 3 100 K130ʷ137ʷ34 0.240
143 35 ʵ0.3 92 500 288 000 9 450 29 400 2 000 3 000 K135ʷ143ʷ35 0.300
135 ʵ0.65
150 38 145 000 325 000 14 800 33 500 2 000 3 000 K135ʷ150ʷ38 0.590
153 26 72 000 214 000 7 350 21 800 1 900 2 800 K145ʷ153ʷ26 0.250
ʵ0.3
145 153 28 ʵ0.65 80 500 247 000 8 200 25 200 1 900 2 800 K145ʷ153ʷ28 0.252
153 36 100 000 325 000 10 200 33 000 1 900 2 800 K145ʷ153ʷ36 0.335
ʵ0.3
150 160 46 ʵ0.65 149 000 470 000 15 200 48 000 1 800 2 700 K150ʷ160ʷ46 0.550
163 26 ʵ0.3 73 500 224 000 7 500 22 800 1 700 2 600 K155ʷ163ʷ26 0.270
155 ʵ0.65
163 36 102 000 340 000 10 400 34 500 1 700 2 600 K155ʷ163ʷ36 0.355
ʵ0.3
160 170 46 ʵ0.65 155 000 505 000 15 800 51 500 1 700 2 500 K160ʷ170ʷ46 0.570
173 26 79 000 251 000 8 050 25 600 1 600 2 400 K165ʷ173ʷ26 0.290
ʵ0.3
165 173 32 ʵ0.65 97 000 330 000 9 900 33 500 1 600 2 400 K165ʷ173ʷ32 0.340
173 36 109 000 380 000 11 100 39 000 1 600 2 400 K165ʷ173ʷ36 0.375
ʵ0.3
170 180 46 160 000 540 000 16 400 55 000 1 600 2 400 K170ʷ180ʷ46 0.620
ʵ0.65
ʵ0.3
175 183 32 ʵ0.65 101 000 350 000 10 300 35 500 1 500 2 300 K175ʷ183ʷ32 0.360
ʵ0.3
185 195 37 ʵ0.65 131 000 425 000 13 300 43 500 1 500 2 200 K185ʷ195ʷ37 0.560
ʵ0.3
195 205 37 ʵ0.65 135 000 450 000 13 800 46 000 1 400 2 100 K195ʷ205ʷ37 0.620
ʵ0.3
210 220 42 ʵ0.65 156 000 560 000 15 900 57 000 1 300 1 900 K210ʷ220ʷ42 0.740
ʵ0.3
220 230 42 ʵ0.65 161 000 590 000 16 400 60 000 1 200 1 800 K220ʷ230ʷ42 0.790
ʵ0.3
240 250 42 ʵ0.65 167 000 635 000 17 000 64 500 1 100 1 700 K240ʷ250ʷ42 0.850
ʵ0.3
265 280 50 ʵ0.65 256 000 850 000 26 100 87 000 1 000 1 500 K265ʷ280ʷ50 1.810

Remarks: Even when an order is placed with reference to “Nominal bearing number” listed in this table, the ordered bearings are subject to being delivered with
different cage type.
B-16
