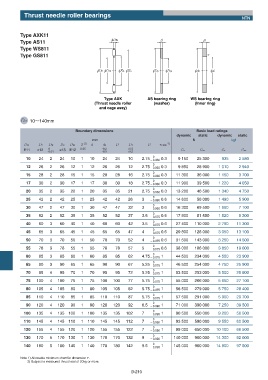

Thrust needle roller bearings
NTN

Type AXK11
Type AS11 ПDW S B
Type WS811
Type GS811 r

ПDC ПDC1 ПEb ПEa ПDp ПDp1 Пd1 Пd

Type AXK AS bearing ring WS bearing ring
(Thrust needle roller (washer) (Inner ring)
and cage assy)

Dc1 10ʙ140mm

Boundary dimensions Basic load ratings
dynamic static dynamic static
mm N kgf
Dc1 Dc Dw Dp Dp1 S 2) d d1 D D1 B rs min 1)
E11 c12 0 e13 E12 0.05 -0.2 +0.5 Ca Coa Ca Coa
-0.01 -0.5 +0.2
0
10 24 2 24 10 1 10 24 24 10 2.75 ʵ0.060 0.3 9 150 25 300 935 2 580
0
12 26 2 26 12 1 12 26 26 12 2.75 ʵ0.060 0.3 9 850 28 900 1 010 2 940
0
15 28 2 28 15 1 15 28 28 16 2.75 ʵ0.060 0.3 11 300 36 000 1 150 3 700
0
17 30 2 30 17 1 17 30 30 18 2.75 ʵ0.060 0.3 11 900 39 500 1 220 4 050
0
20 35 2 35 20 1 20 35 35 21 2.75 ʵ0.060 0.3 13 200 46 500 1 340 4 750
0
25 42 2 42 25 1 25 42 42 26 3 ʵ0.060 0.6 14 600 58 000 1 490 5 900
0
30 47 2 47 30 1 30 47 47 32 3 ʵ0.060 0.6 16 300 69 500 1 660 7 100
0
35 52 2 52 35 1 35 52 52 37 3.5 ʵ0.075 0.6 17 800 81 500 1 820 8 300
0
40 60 3 60 40 1 40 60 60 42 3.5 ʵ0.075 0.6 27 400 110 000 2 790 11 300
0
45 65 3 65 45 1 45 65 65 47 4 ʵ0.075 0.6 29 800 128 000 3 050 13 100
0
50 70 3 70 50 1 50 70 70 52 4 ʵ0.075 0.6 31 500 143 000 3 250 14 500
0
55 78 3 78 55 1 55 78 78 57 5 ʵ0.075 0.6 38 000 186 000 3 850 19 000
0
60 85 3 85 60 1 60 85 85 62 4.75 ʵ0.075 1 44 500 234 000 4 550 23 900
0
65 90 3 90 65 1 65 90 90 67 5.25 ʵ0.075 1 46 500 254 000 4 750 25 900
0
70 95 4 95 70 1 70 95 95 72 5.25 ʵ0.075 1 53 500 253 000 5 500 25 800
0
75 100 4 100 75 1 75 100 100 77 5.75 ʵ0.075 1 55 000 266 000 5 650 27 100
0
80 105 4 105 80 1 80 105 105 82 5.75 ʵ0.075 1 56 500 279 000 5 750 28 400
0
85 110 4 110 85 1 85 110 110 87 5.75 ʵ0.075 1 57 500 291 000 5 900 29 700
0
90 120 4 120 90 1 90 120 120 92 6.5 ʵ0.090 1 71 000 390 000 7 250 39 500
0
100 135 4 135 100 1 100 135 135 102 7 ʵ0.090 1 90 500 550 000 9 200 56 500
0
110 145 4 145 110 1 110 145 145 112 7 ʵ0.090 1 93 500 590 000 9 550 60 500
0
120 155 4 155 120 1 120 155 155 122 7 ʵ0.090 1 99 000 650 000 10 100 66 500
0
130 170 5 170 130 1 130 170 170 132 9 ʵ0.090 1 140 000 900 000 14 300 92 000
0
140 180 5 180 140 1 140 178 180 142 9.5 ʵ0.090 1 145 000 960 000 14 800 97 500

Note 1) Allowable minimum chamfer dimension r.
2) Subject to measured thrust load of 20kg or more.
