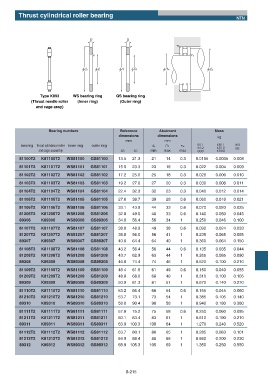

Page 277 - needle bearings

Thrust cylindrical roller bearing
NTN

B B
r ra

r ra

Пd1 Пd ПD ПD1 ПDb Пda

Type K893 WS bearing ring GS bearing ring
(Thrust needle roller (Inner ring) (Outer ring)
and cage assy)

Bearing numbers Reference Abutment Mass
dimensions dimensions kg
mm mm
bearing thrust cylindrical roller inner ring outer ring da Db ras , 84
, (4
and cage assembly Eb Ea min max max ,
81100T2 K81100T2 WS81100 GS81100 13.5 21.3 21 14 0.3 0.0195 0.0035 0.008

81101T2 K81101T2 WS81101 GS81101 15.5 23.3 23 16 0.3 0.022 0.004 0.009
81102T2 K81102T2 WS81102 GS81102 17.2 25.0 25 18 0.3 0.026 0.006 0.010
81103T2 K81103T2 WS81103 GS81103 19.2 27.0 27 20 0.3 0.030 0.008 0.011
81104T2 K81104T2 WS81104 GS81104 22.4 32.3 32 23 0.3 0.040 0.012 0.014

81105T2 K81105T2 WS81105 GS81105 27.6 38.7 39 28 0.6 0.060 0.018 0.021
81106T2 K81106T2 WS81106 GS81106 33.1 43.9 44 33 0.6 0.070 0.020 0.025
81206T2 K81206T2 WS81206 GS81206 32.8 49.0 48 33 0.6 0.140 0.050 0.045
89306 K89306 WS89306 GS89306 34.0 56.4 56 34 1 0.250 0.046 0.100

81107T2 K81107T2 WS81107 GS81107 38.0 48.9 49 38 0.6 0.090 0.024 0.033
81207T2 K81207T2 WS81207 GS81207 39.8 56.0 56 41 1 0.235 0.065 0.085
89307 K89307 WS89307 GS89307 40.0 64.4 64 40 1 0.360 0.064 0.150
81108T2 K81108T2 WS81108 GS81108 43.2 56.4 56 44 0.6 0.135 0.035 0.044
81208T2 K81208T2 WS81208 GS81208 43.7 62.9 63 44 1 0.265 0.085 0.090
89308 K89308 WS89308 GS89308 46.0 74.4 74 46 1 0.520 0.100 0.210
81109T2 K81109T2 WS81109 GS81109 48.4 61.6 61 49 0.6 0.150 0.040 0.055
81209T2 K81209T2 WS81209 GS81209 48.8 68.0 68 49 1 0.310 0.100 0.105
89309 K89309 WS89309 GS89309 50.9 81.3 81 51 1 0.670 0.140 0.270
81110T2 K81110T2 WS81110 GS81110 53.2 66.4 66 54 0.6 0.165 0.045 0.060
81210T2 K81210T2 WS81210 GS81210 53.7 73.1 73 54 1 0.385 0.105 0.140
89310 K89310 WS89310 GS89310 58.0 90.4 90 58 1 0.940 0.180 0.380

81111T2 K81111T2 WS81111 GS81111 57.8 75.2 75 58 0.6 0.250 0.060 0.095
81211T2 K81211T2 WS81211 GS81211 60.1 83.4 83 61 1 0.610 0.190 0.210
89311 K89311 WS89311 GS89311 63.9 100.3 100 64 1 1.270 0.240 0.520
81112T2 K81112T2 WS81112 GS81112 63.7 80.1 80 65 1 0.285 0.083 0.101
81212T2 K81212T2 WS81212 GS81212 64.9 88.4 88 66 1 0.660 0.200 0.230
89312 K89312 WS89312 GS89312 68.9 105.3 105 69 1 1.350 0.250 0.550

B-215
