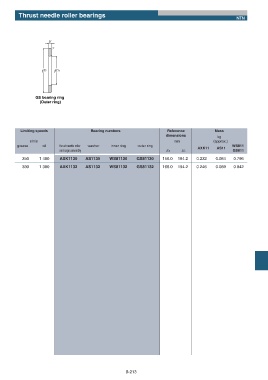

Thrust needle roller bearings
NTN

B
r

ПD ПD1

GS bearing ring
(Outer ring)

Limiting speeds Bearing numbers Reference Mass
dimensions
kg
r/min mm (approx.)
grease oil thrust needle roller washer inner ring outer ring WS811
AXK11 AS11
and cage assembly Eb Ea GS811
350 1 400 AXK1130 AS1130 WS81130 GS81130 156.0 184.2 0.232 0.084 0.796

330 1 300 AXK1132 AS1132 WS81132 GS81132 166.0 194.2 0.246 0.089 0.842

B-213
