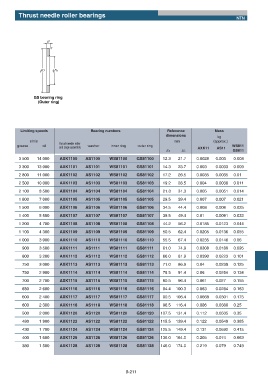

Page 273 - needle bearings

Thrust needle roller bearings
NTN

B
r

ПD ПD1

GS bearing ring
(Outer ring)

Limiting speeds Bearing numbers Reference Mass
dimensions
kg
r/min mm (approx.)
thrust needle roller
grease oil washer inner ring outer ring WS811
and cage assembly AXK11 AS11
Eb Ea GS811
3 500 14 000 AXK1100 AS1100 WS81100 GS81100 12.3 21.7 0.0028 0.003 0.008
3 300 13 000 AXK1101 AS1101 WS81101 GS81101 14.3 23.7 0.003 0.0033 0.009
2 800 11 000 AXK1102 AS1102 WS81102 GS81102 17.2 26.5 0.0035 0.0035 0.01
2 500 10 000 AXK1103 AS1103 WS81103 GS81103 19.2 28.5 0.004 0.0038 0.011
2 100 8 500 AXK1104 AS1104 WS81104 GS81104 21.3 31.3 0.005 0.0051 0.014

1 800 7 000 AXK1105 AS1105 WS81105 GS81105 29.5 39.4 0.007 0.007 0.021
1 500 6 000 AXK1106 AS1106 WS81106 GS81106 34.5 44.4 0.008 0.008 0.025
1 400 5 500 AXK1107 AS1107 WS81107 GS81107 39.5 49.4 0.01 0.0091 0.033
1 200 4 700 AXK1108 AS1108 WS81108 GS81108 44.2 56.2 0.0185 0.0123 0.044

1 100 4 300 AXK1109 AS1109 WS81109 GS81109 50.5 62.4 0.0205 0.0136 0.055
1 000 3 900 AXK1110 AS1110 WS81110 GS81110 55.5 67.4 0.0235 0.0148 0.06
900 3 500 AXK1111 AS1111 WS81111 GS81111 61.0 74.9 0.0308 0.0189 0.095
800 3 200 AXK1112 AS1112 WS81112 GS81112 66.0 81.9 0.0390 0.0223 0.101

750 3 000 AXK1113 AS1113 WS81113 GS81113 71.0 86.9 0.04 0.0239 0.125
750 2 900 AXK1114 AS1114 WS81114 GS81114 75.5 91.4 0.06 0.0254 0.134
700 2 700 AXK1115 AS1115 WS81115 GS81115 80.5 96.4 0.061 0.027 0.155
650 2 600 AXK1116 AS1116 WS81116 GS81116 84.4 100.3 0.063 0.0284 0.163

600 2 400 AXK1117 AS1117 WS81117 GS81117 90.5 106.4 0.0668 0.0301 0.175
600 2 300 AXK1118 AS1118 WS81118 GS81118 96.5 116.4 0.086 0.0388 0.25
500 2 000 AXK1120 AS1120 WS81120 GS81120 107.5 131.4 0.112 0.0505 0.35
480 1 900 AXK1122 AS1122 WS81122 GS81122 115.5 139.4 0.122 0.0549 0.385

430 1 700 AXK1124 AS1124 WS81124 GS81124 125.5 149.4 0.131 0.0592 0.415
400 1 600 AXK1126 AS1126 WS81126 GS81126 136.0 164.0 0.205 0.074 0.663
380 1 500 AXK1128 AS1128 WS81128 GS81128 146.0 174.0 0.219 0.079 0.749
