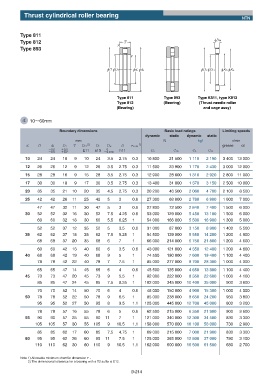

Thrust cylindrical roller bearing
NTN

Type 811
Type 812 T ПDW
r
Type 893
r

ПDПD1 ПdПd1 ПDcПDc1 ПEb ПEa

Type 811 Type 893 Type K811, type K812
Type 812 (Bearing) (Thrust needle roller
(Bearing) and cage assy)

d 10ʙ60mm

Boundary dimensions Basic load ratings Limiting speeds
dynamic static dynamic static
mm N kgf r/min
d D d1 D1 T Dc1 2) Dc Dw B rs min 1) grease oil
ʵ0.2 ʴ0.5 E11 a13 0 h11
ʵ0.5 ʴ0.2 ʵ0.010 Ca Coa Ca Coa
10 24 24 10 9 10 24 3.5 2.75 0.3 10 800 21 500 1 110 2 190 3 400 13 000

12 26 26 12 9 12 26 3.5 2.75 0.3 11 500 23 900 1 170 2 430 3 000 12 000
15 28 28 16 9 15 28 3.5 2.75 0.3 12 900 28 600 1 310 2 920 2 800 11 000
17 30 30 18 9 17 30 3.5 2.75 0.3 13 400 31 000 1 370 3 150 2 500 10 000
20 35 35 21 10 20 35 4.5 2.75 0.3 20 200 46 500 2 060 4 700 2 100 8 500

25 42 42 26 11 25 42 5 3 0.6 27 300 68 000 2 780 6 900 1 800 7 000
47 47 32 11 30 47 5 3 0.6 27 800 72 500 2 840 7 400 1 500 6 000
30 52 52 32 16 30 52 7.5 4.25 0.6 53 000 129 000 5 450 13 100 1 500 6 000
60 60 32 18 30 60 5.5 6.25 1 54 000 166 000 5 500 16 900 1 300 5 000

52 52 37 12 35 52 5 3.5 0.6 31 000 87 000 3 150 8 900 1 400 5 500
35 62 62 37 18 35 62 7.5 5.25 1 54 500 139 000 5 550 14 200 1 200 4 900
68 68 37 20 35 68 6 7 1 66 000 214 000 6 750 21 800 1 200 4 600
60 60 42 13 40 60 6 3.5 0.6 43 000 121 000 4 350 12 400 1 200 4 800
40 68 68 42 19 40 68 9 5 1 74 500 190 000 7 600 19 400 1 100 4 400
78 78 42 22 40 78 7 7.5 1 85 000 277 000 8 700 28 300 1 000 4 000
65 65 47 14 45 65 6 4 0.6 45 500 135 000 4 650 13 800 1 100 4 400
45 73 73 47 20 45 73 9 5.5 1 82 000 222 000 8 350 22 600 1 000 4 100
85 85 47 24 45 85 7.5 8.25 1 102 000 345 000 10 400 35 000 900 3 600
70 70 52 14 50 70 6 4 0.6 48 000 150 000 4 900 15 300 1 000 4 000
50 78 78 52 22 50 78 9 6.5 1 85 000 238 000 8 650 24 200 950 3 800
95 95 52 27 50 95 8 9.5 1.1 125 000 445 000 12 700 45 000 800 3 200

78 78 57 16 55 78 6 5 0.6 62 500 215 000 6 350 21 900 900 3 600
55 90 90 57 25 55 90 11 7 1 121 000 340 000 12 300 34 500 830 3 300
105 105 57 30 55 105 9 10.5 1.1 158 000 570 000 16 100 58 000 730 2 900
85 85 62 17 60 85 7.5 4.75 1 69 000 215 000 7 000 21 900 830 3 300
60 95 95 62 26 60 95 11 7.5 1 125 000 365 000 12 800 37 000 780 3 100
110 110 62 30 60 110 9 10.5 1.1 162 000 600 000 16 500 61 500 680 2 700

Note 1) Allowable minimum chamfer dimension r .
2) The dimensional tolerance for a bearing with a T2 suffix is E12.
