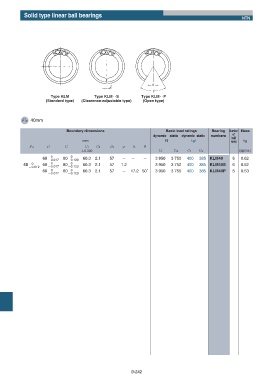

Solid type linear ball bearings
NTN
Type KLM Type KLMʝS Type KLMʝP
(Standard type) (Clearance-adjustable type) (Open type)
FW 40mm
Boundary dimensions Basic load ratings Bearing Number Mass
dynamic static dynamic static numbers of
ball
mm N kgf rows kg
Fw D C C1 C2 D1 g h В
ʶ0.300 Cr Cor Cr Cor (approx.)
0 0
60 80 60.3 2.1 57 ʵ ʵ ʵ 3 950 3 750 400 385 KLM40 6 0.62
ʵ0.017 ʵ0.120
40 0 60 0 80 0 60.3 2.1 57 1.2 ʵ ʵ 3 950 3 750 400 385 KLM40S 6 0.62
ʵ0.012 ʵ0.017 ʵ0.120
60 0 80 0 60.3 2.1 57 ʵ 17.2 50˚ 3 950 3 750 400 385 KLM40P 5 0.53
ʵ0.017 ʵ0.120
