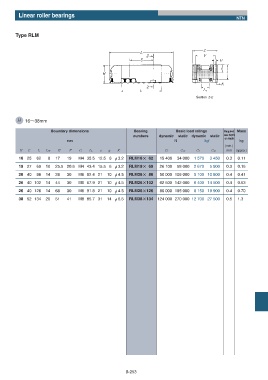

Linear roller bearings
NTN
Type RLM
Section Z Z
H 16ʙ38mm
Boundary dimensions Bearing Basic load ratings Required Mass
numbers dynamic static dynamic static case depth
on track
mm N kgf kg
min.
H C L Lw E F G Lt e g K Cr Cor Cr Cor mm (approx.)
16 25 62 8 17 19 M4 35.5 12.5 6 П3.2 RLM16ʷʷ 62 15 400 34 000 1 570 3 450 0.3 0.11
19 27 69 10 25.5 20.6 M4 43.4 15.5 6 П3.2 RLM19ʷʷ 69 26 100 58 000 2 670 5 900 0.3 0.16
26 40 86 14 28 30 M6 52.4 21 10 П4.5 RLM26ʷʷ 86 50 000 106 000 5 100 10 800 0.4 0.41
26 40 102 14 44 30 M6 67.9 21 10 П4.5 RLM26ʷʷ102 62 500 142 000 6 400 14 500 0.4 0.53
26 40 126 14 68 30 M6 91.8 21 10 П4.5 RLM26ʷʷ126 80 000 195 000 8 150 19 900 0.4 0.70
38 52 134 20 51 41 M8 85.7 31 14 П6.5 RLM38ʷʷ134 124 000 270 000 12 700 27 500 0.5 1.3
