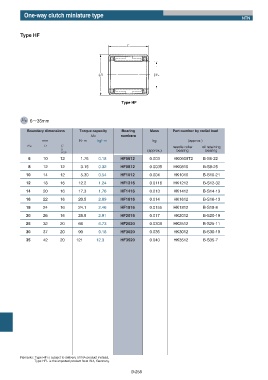

P. 320
One-way clutch miniature type
NTN
Type HF
Type HF
FW 6ʙ35mm
Boundary dimensions Torque capacity Bearing Mass Part number by radial load
Md numbers
mm Nŋm kgfŋm kg (approx.)
Fw D C needle roller oil retaining
0 (approx.) bearing bearing
ʵ0.25
6 10 12 1.76 0.18 HF0612 0.003 HK0609T2 B-S6-22
8 12 12 3.15 0.32 HF0812 0.0035 HK0810 B-S8-25
10 14 12 5.30 0.54 HF1012 0.004 HK1010 B-S10-21
12 18 16 12.2 1.24 HF1216 0.0116 HK1212 B-S12-32
14 20 16 17.3 1.76 HF1416 0.013 HK1412 B-S14-13
16 22 16 20.5 2.09 HF1616 0.014 HK1612 B-S16-13
18 24 16 24.1 2.46 HF1816 0.0155 HK1812 B-S18-8
20 26 16 28.5 2.91 HF2016 0.017 HK2012 B-S20-19
25 32 20 66 6.73 HF2520 0.0309 HK2512 B-S25-11
30 37 20 90 9.18 HF3020 0.036 HK3012 B-S30-19
35 42 20 121 12.3 HF3520 0.040 HK3512 B-S35-7
Remarks: Type HF is subject to delivery of INA product instead.
Type HFL is the imported product from INA, Germany.
B-258
