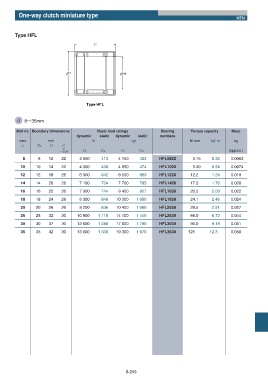

One-way clutch miniature type
NTN
Type HFL
C
ПD ПFW
Type HFL
d 8ʙ35mm
Shaft dia Boundary dimensions Basic load ratings Bearing Torque capacity Mass
dynamic static dynamic static numbers
mm mm N kgf Nŋmm kgfŋm kg
d Fw D C
0
ʵ0.25 Cr Cor Cr Cor (approx.)
8 8 12 22 4 050 413 4 150 423 HFL0822 3.15 0.32 0.0063
10 10 14 22 4 300 438 4 650 474 HFL1022 5.30 0.54 0.0074
12 12 18 26 6 300 642 6 500 663 HFL1226 12.2 1.24 0.018
14 14 20 26 7 100 724 7 700 785 HFL1426 17.3 1.76 0.020
16 16 22 26 7 300 744 8 400 857 HFL1626 20.5 2.09 0.022
18 18 24 26 8 300 846 10 300 1 050 HFL1826 24.1 2.46 0.024
20 20 26 26 8 200 836 10 400 1 060 HFL2026 28.5 2.91 0.027
25 25 32 30 10 900 1 110 14 100 1 440 HFL2530 66.0 6.73 0.044
30 30 37 30 12 600 1 280 17 600 1 790 HFL3030 90.0 9.18 0.051
35 35 42 30 13 000 1 330 19 300 1 970 HFL3530 121 12.3 0.058
