Bottom roller bearings for textile machinery
NTN

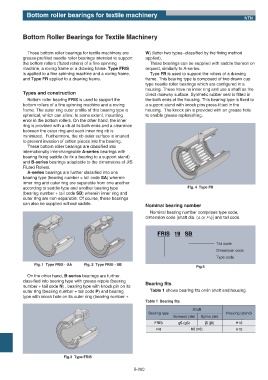

Bottom Roller Bearings for Textile Machinery

These bottom roller bearings for textile machinery are W) (latter two types---classified by the fixing method
grease-prefilled needle roller bearings intended to support applied).
the bottom rollers (fluted rollers) of a fine spinning These bearings can be supplied with saddle thereon on
machine, a roving frame or a drawing frame. Type FRIS request, similarly to A-series.
is applied to a fine spinning machine and a roving frame, Type FR is used to support the rollers of a drawing
and Type FR applied to a drawing frame. frame. This bearing type is composed of two drawn cup
type needle roller bearings which are configured in a
housing. These have no inner ring and use a shaft as the
Types and construction direct raceway surface. Synthetic rubber seal is fitted in
Bottom roller bearing FRIS is used to support the the both ends of the housing. This bearing type is fixed to
bottom rollers of a fine spinning machine and a roving a support stand with knock pins press-fitted in the
frame. The outer ring outer profile of this bearing type is housing. The knock pin is provided with an grease hole
spherical, which can allow, to some extent, mounting to enable grease replenishing.
error in the bottom rollers. On the other hand, the inner
ring is provided with a rib at its both ends and a clearance
between the outer ring and each inner ring rib is
minimized. Furthermore, the rib outer surface is knurled
to prevent invasion of cotton pieces into the bearing.
These bottom roller bearings are classified into
internationally interchangeable A-series bearings with
bearing fixing saddle (to fix a bearing to a support stand)
and B-series bearings adaptable to the dimensions of JIS
Fluted Rollers.
A-series bearings are further classified into one
bearing type (bearing number + tail code SA) wherein
inner ring and outer ring are separable from one another
according to saddle type and another bearing type Fig. 4 Type FR
(bearing number + tail code SB) wherein inner ring and
outer ring are non-separable. Of course, these bearings
can also be supplied without saddle.
Nominal bearing number
Nominal bearing number comprises type code,
dimension code [shaft dia. (d or Fw)] and tail code.

FRIS 19 SB

Tail code
Dimension code
Type code
Fig. 1 Type FRISʝSA Fig. 2 Type FRISʝSB
Fig.5
On the other hand, B-series bearings are further
classified into bearing type with grease nipple (bearing
Bearing fits
number + tail code N) , bearing type with knock pin on its
outer ring (bearing number + tail code P) and bearing Table 1 shows bearing fits on/in shaft and housing.
type with knock hole on its outer ring (bearing number +
Table 1 Bearing fits
Shaft
Bearing type Housing (stand)
Screwed joint Spline joint
FRIS g5 (g6) j5 (j6) H10
FR h5 (h6) H10

Fig.3 Type FRIS

B-260
