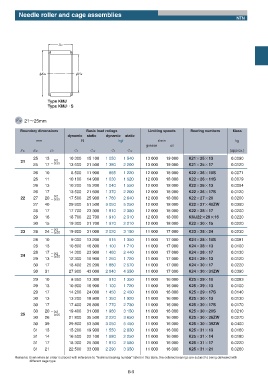

Needle roller and cage assemblies
NTN

BC

ПEW ПFW

Type KMJ
Type KMJŋŋS

FW 21ʙ25mm

Boundary dimensions Basic load ratings Limiting speeds Bearing numbers Mass
dynamic static dynamic static
mm N kgf r/min kg
grease oil
Fw Ew Bc Cr Cor Cr Cor (approx.)
25 13 10 300 15 100 1 050 1 540 13 000 19 000 K21ʷ25ʷ13 0.0090
21 ʵ0.2
25 17 ʵ0.55 13 600 21 500 1 380 2 200 13 000 19 000 K21ʷ25ʷ17 0.0120
26 10 8 500 11 900 865 1 220 12 000 18 000 K22ʷ26ʷ10S 0.0071
26 11 10 100 14 900 1 030 1 520 12 000 18 000 K22ʷ26ʷ11S 0.0079
26 13 10 200 15 200 1 040 1 550 12 000 18 000 K22ʷ26ʷ13 0.0094
26 17 13 500 21 600 1 370 2 200 12 000 18 000 K22ʷ26ʷ17S 0.0120
ʵ0.2
22 27 20 ʵ0.55 17 500 25 900 1 780 2 640 12 000 18 000 K22ʷ27ʷ20 0.0200
27 40 29 900 51 500 3 050 5 250 12 000 18 000 K22ʷ27ʷ40ZW 0.0390
28 17 17 700 23 300 1 810 2 380 12 000 18 000 K22ʷ28ʷ17 0.0200
29 16 18 700 22 700 1 910 2 310 12 000 18 000 KMJ22ʷʷ29ʷʷ16 0.0220
30 15 19 300 21 700 1 970 2 210 12 000 18 000 K22ʷ30ʷ15 0.0220
ʵ0.2
23 28 24 ʵ0.55 19 800 31 000 2 020 3 150 11 000 17 000 K23ʷ28ʷ24 0.0230
28 10 9 000 13 200 915 1 350 11 000 17 000 K24ʷ28ʷ10S 0.0081
28 13 10 800 16 800 1 100 1 710 11 000 17 000 K24ʷ28ʷ13 0.0100
28 17 ʵ0.2 14 300 23 900 1 460 2 440 11 000 17 000 K24ʷ28ʷ17 0.0130
24 ʵ0.55
29 13 12 300 16 900 1 250 1 720 11 000 17 000 K24ʷ29ʷ13 0.0120
30 17 18 400 25 200 1 880 2 570 11 000 17 000 K24ʷ30ʷ17 0.0220
30 31 27 900 43 000 2 840 4 350 11 000 17 000 K24ʷ30ʷ31ZW 0.0390
29 10 8 950 13 300 910 1 350 11 000 16 000 K25ʷ29ʷ10 0.0083
29 13 10 800 16 900 1 100 1 720 11 000 16 000 K25ʷ29ʷ13 0.0100
29 17 14 200 24 000 1 450 2 450 11 000 16 000 K25ʷ29ʷ17S 0.0140
30 13 13 200 18 800 1 350 1 920 11 000 16 000 K25ʷ30ʷ13 0.0130
30 17 17 400 26 800 1 770 2 730 11 000 16 000 K25ʷ30ʷ17S 0.0170
30 20 ʵ0.2 19 400 31 000 1 980 3 150 11 000 16 000 K25ʷ30ʷ20S 0.0210
25 ʵ0.55
30 26 21 800 35 500 2 220 3 650 11 000 16 000 K25ʷ30ʷ26ZW 0.0270
30 39 29 800 53 500 3 050 5 450 11 000 16 000 K25ʷ30ʷ39ZW 0.0400
31 13 15 200 19 900 1 550 2 030 11 000 16 000 K25ʷ31ʷ13 0.0160
31 14 16 500 22 100 1 680 2 250 11 000 16 000 K25ʷ31ʷ14 0.0180
31 17 18 300 25 300 1 870 2 580 11 000 16 000 K25ʷ31ʷ17 0.0220
31 21 22 500 33 000 2 290 3 350 11 000 16 000 K25ʷ31ʷ21 0.0260
Remarks: Even when an order is placed with reference to “Nominal bearing number” listed in this table, the ordered bearings are subject to being delivered with
different cage type.
B-9
